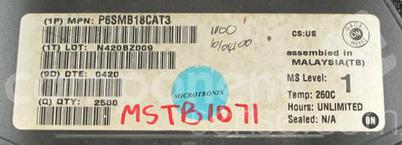

Model P6SMB18CAT3G
Description TVS Diode Littelfuse P6SMB18CAT3G bidirectional, 600W, 25.2V, 2-pin DO-214AA (SMB) package
Product QR code
Brand: Littelfuse
Packaging DO-214AA
Delivery time
Packaging method Tape & Reel (TR)
Standard packaging quantity 1
0.48  yuan 0.48yuan
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(2784) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/breakdown voltage:

18.0 V



Technical parameters/number of pins:

2



Technical parameters/clamp voltage:

25.2 V



Technical parameters/test current:

1 mA



Technical parameters/maximum reverse breakdown voltage:

18.9 V



Technical parameters/peak pulse power:

600 W



Technical parameters/minimum reverse breakdown voltage:

17.1 V



Technical parameters/operating temperature (Max):

150 ℃



Technical parameters/operating temperature (Min):

-65 ℃



Technical parameters/operating temperature:

-65℃ ~ 150℃



Encapsulation parameters/installation method:

Surface Mount



Package parameters/number of pins:

2



Encapsulation parameters/Encapsulation:

DO-214AA



Dimensions/Length:

4.6 mm



Dimensions/Width:

3.95 mm



Dimensions/Height:

2.28 mm



Dimensions/Packaging:

DO-214AA



Physical parameters/operating temperature:

-65℃ ~ 150℃ (TJ)



Other/Product Lifecycle:

Obsolete



Other/Packaging Methods:

Tape & Reel (TR)



Other/Manufacturing Applications:

Medical, automotive, automotive grade, consumer electronics, communication and networking, industrial, automation and process control, computers and computer peripherals, power management



Compliant with standards/RoHS standards:



Compliant with standards/lead standards:

Lead Free



Customs information/ECCN code:

EAR99
