Model 3296X-1-503LF

Description BOURNS 3296X-1-503LF Fine adjuster, 25 rpm 50K

Brand: Bourns J.W. Miller

Packaging 插件

Delivery time

Packaging method Tube

Standard packaging quantity 1

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Technical parameters/rated voltage (DC):	300 V
Technical parameters/Insulation resistance:	1000 MΩ
Technical parameters/tolerances:	±10 %
Technical parameters/rated power:	0.5 W
Technical parameters/resistance:	50 kΩ
Technical parameters/resistance deviation:	±10 %
Technical parameters/operating temperature (Max):	150 ℃
Technical parameters/operating temperature (Min):	-55 ℃
Technical parameters/accuracy:	±10 %
Technical parameters/rated voltage:	300 V
Encapsulation parameters/installation method:	Through Hole
Encapsulation parameters/Encapsulation:	plugin
Dimensions/Length:	11.05 mm
Dimensions/Width:	4.83 mm
Dimensions/Height:	10.03 mm
Dimensions/Packaging:	plugin
Physical parameters/color:	Blue
Physical parameters/weight:	851 mg
Physical parameters/operating temperature:	-55℃ ~ 125℃
Physical parameters/temperature coefficient:	±100 ppm/℃
Other/Product Lifecycle:	Active
Other/Packaging Methods:	Tube
Other/Manufacturing Applications:	Power management, portable equipment, industrial, consumer electronics products
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	Lead Free
Compliant with the REACH SVHC standard:	No SVHC
Compliant with standard/REACH SVHC version:	2016/06/20
Customs information/ECCN code:	EAR99
Customs information/HTS code:	8533408050

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual
3296X-1-503	ChendaHang	功能相似		微調電阻器 - 透孔 3/8" 50Kohms Sealed Horizontal Adjust
3296X-1-503	Bourns J.W. Miller	功能相似	Square - 0.375" L x 0.190" W x 0.395" H (9.53mm x 4.83mm x 10.03mm)	微調電阻器 - 透孔 3/8" 50Kohms Sealed Horizontal Adjust	PDF
M64Z503KB40	VISHAY	功能相似	Through Hole	微调电位器, 50 kohm, 23 转, 通孔安装, 64Z系列, 500 mW, ± 10%	PDF
M64Z503KB40	Vishay Spectrol	功能相似	Through Hole	微调电位器, 50 kohm, 23 转, 通孔安装, 64Z系列, 500 mW, ± 10%	PDF

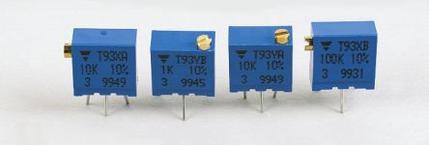

T93XA503KT20	VISHAY	功能相似	Square - 0.382" L x 0.197" W x 0.386" H (9.70mm x 5.00mm x 9.80mm)	VISHAY T93XA503KT20 微调器,22转 50K	PDF
