Technical parameters/number of contacts: | 20 |
|
Technical parameters/polarity: | Male |
|
Technical parameters/Contact electroplating: | Gold |
|
Technical parameters/rated current: | 1.75 A |
|
Technical parameters/Insulation resistance: | 1.00 GΩ |
|
Technical parameters/number of rows: | 2 |
|
Technical parameters/Flammability level: | UL 94 V-0 |
|
Technical parameters/number of pins: | 20 |
|
Technical parameters/operating temperature (Max): | 105 ℃ |
|
Technical parameters/operating temperature (Min): | -55 ℃ |
|
Encapsulation parameters/installation method: | Through Hole |
|
Packaging parameters/pin spacing: | 2.54 mm |
|
Dimensions/Length: | 44.8 mm |
|
Dimensions/Width: | 17.3 mm |
|
Dimensions/Height: | 8.30 mm |
|
Dimensions/Pin Spacing: | 2.54 mm |
|
Physical parameters/shell color: | Black |
|
Physical parameters/color: | Beige |
|
Physical parameters/contact material: | Copper Alloy |
|
Physical parameters/operating temperature: | -55℃ ~ 105℃ |
|
Physical parameters/shell material: | Polyester |
|
Other/Product Lifecycle: | Active |
|
Other/Packaging Methods: | Bulk |
|
Other/Manufacturing Applications: | Defense, Military, and Aviation |
|
Compliant with standards/RoHS standards: | RoHS Compliant |
|
Compliant with standards/lead standards: | Lead Free |
|
Compliant with the REACH SVHC standard: | No SVHC |
|
Compliant with standards/military grade: | Yes |
|
Compliant with standard/REACH SVHC version: | 2016/06/20 |
|
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|
3428-5603
|
3M | 完全替代 |
集管和线壳 20P R/A SOLDER TAIL
|
|||

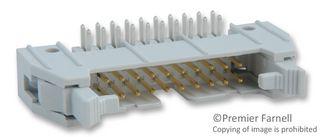

71922-220LF
|
Amphenol | 类似代替 |
AMPHENOL FCI 71922-220LF Wire-To-Board Connector, 2.54mm, 20Contacts, Header, Quickie Series, Through Hole, 2Rows
|
