Model MCR01MZPF6800

Description Surface mount thick film chip resistor 0402 shell 680 Ohm 1% tolerance 100 PPM

Brand: ROHM Semiconductor

Packaging 0402

Delivery time

Packaging method Tape & Reel (TR)

Standard packaging quantity 1

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(1384) Minimum order quantity(1)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/rated voltage (DC):	50.0 V
Technical parameters/tolerances:	±1 %
Technical parameters/rated power:	0.063 W
Technical parameters/product series:	MCR
Technical parameters/resistance:	680 Ω
Technical parameters/resistance deviation:	±1 %
Technical parameters/operating temperature (Max):	155 ℃
Technical parameters/operating temperature (Min):	-55 ℃
Encapsulation parameters/installation method:	Surface Mount
Encapsulation parameters/Encapsulation (metric):	1005
Encapsulation parameters/Encapsulation:	0402
Dimensions/Length:	1 mm
Dimensions/Width:	0.5 mm
Dimensions/Height:	0.35 mm
Dimensions/Packaging (Metric):	1005
Dimensions/Packaging:	0402
Physical parameters/operating temperature:	-55℃ ~ 155℃
Physical parameters/temperature coefficient:	±100 ppm/℃
Other/Product Lifecycle:	Discontinued at Digi-Key
Other/Packaging Methods:	Tape & Reel (TR)
Compliant with standards/RoHS standards:
Compliant with standards/lead standards:	Lead Free

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual

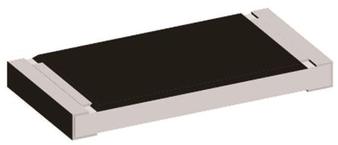

CRCW0402680RFKED	VISHAY	功能相似	0402	0402 格式 CRCW 系列 - 1% (Paper T/R)（10Ω 至 9.76kΩ）高品质陶瓷金属上釉保护盖上釉极好的稳定性（70 °C 时，ΔR/R ≤ 1 % 1000 小时）镍挡板层无铅焊接触点纯锡镀层与无铅和含铅焊接工艺兼容 Power at 70°C \| 0.63W ---\|--- Resistance Tolerance \| 1% Temperature Coefficient \| 100ppm/°C Operating Temperature \| -55 → 155°C Max.Operating Voltage \| 50V Dimensions (LxWxT) \| 1 x 0.5 x 0.35 mm	PDF
CRCW0402680RFKED	Vishay Dale	功能相似	0402	0402 格式 CRCW 系列 - 1% (Paper T/R)（10Ω 至 9.76kΩ）高品质陶瓷金属上釉保护盖上釉极好的稳定性（70 °C 时，ΔR/R ≤ 1 % 1000 小时）镍挡板层无铅焊接触点纯锡镀层与无铅和含铅焊接工艺兼容 Power at 70°C \| 0.63W ---\|--- Resistance Tolerance \| 1% Temperature Coefficient \| 100ppm/°C Operating Temperature \| -55 → 155°C Max.Operating Voltage \| 50V Dimensions (LxWxT) \| 1 x 0.5 x 0.35 mm	PDF
CRCW0402680RFKED	Vishay Semiconductor	功能相似	0402	0402 格式 CRCW 系列 - 1% (Paper T/R)（10Ω 至 9.76kΩ）高品质陶瓷金属上釉保护盖上釉极好的稳定性（70 °C 时，ΔR/R ≤ 1 % 1000 小时）镍挡板层无铅焊接触点纯锡镀层与无铅和含铅焊接工艺兼容 Power at 70°C \| 0.63W ---\|--- Resistance Tolerance \| 1% Temperature Coefficient \| 100ppm/°C Operating Temperature \| -55 → 155°C Max.Operating Voltage \| 50V Dimensions (LxWxT) \| 1 x 0.5 x 0.35 mm	PDF
RK73H1ETTP6800F	KOA	功能相似	0402	Res Thick Film 0402 680Ω 1% 0.1W(1/10W) ±100ppm/℃ Pad SMD Automotive T/R
