Model MCR01MZPF2002

Description 0402 Format resistors, ROHM MCR series ROHM's MCR series chip resistors are composed of metal glass thick film components to ensure high reliability. These chip resistors are suitable for applications ranging from automotive and industrial to consumer electronics. ROHM MCR resistors have ISO9001 and ISO/TS16949 certifications. ###Thick film -0402/0603

Brand: ROHM Semiconductor

Packaging 0402

Delivery time

Packaging method Tape & Reel (TR)

Standard packaging quantity 1

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(6665) Minimum order quantity(1)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/rated voltage (DC):	50.0 V
Technical parameters/tolerances:	±1 %
Technical parameters/rated power:	0.063 W
Technical parameters/product series:	MCR
Technical parameters/resistance:	20 kΩ
Technical parameters/resistance deviation:	±1 %
Technical parameters/operating temperature (Max):	155 ℃
Technical parameters/operating temperature (Min):	-55 ℃
Encapsulation parameters/installation method:	Surface Mount
Encapsulation parameters/Encapsulation (metric):	1005
Encapsulation parameters/Encapsulation:	0402
Dimensions/Length:	1 mm
Dimensions/Width:	500 µm
Dimensions/Height:	0.35 mm
Dimensions/Packaging (Metric):	1005
Dimensions/Packaging:	0402
Physical parameters/operating temperature:	-55℃ ~ 155℃
Physical parameters/temperature coefficient:	±100 ppm/℃
Other/Product Lifecycle:	Discontinued at Digi-Key
Other/Packaging Methods:	Tape & Reel (TR)
Compliant with standards/RoHS standards:
Compliant with standards/lead standards:	Lead Free

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual

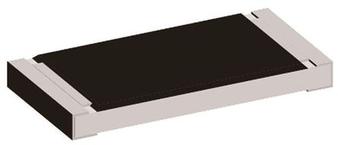

CRCW040220K0FKED	Vishay Semiconductor	功能相似	0402	0402 格式 CRCW 系列 - 1% (Paper T/R)（10kΩ 至 10MΩ） Vishay CRCW 芯片电阻器是厚膜表面安装解决方案。它们由高质量陶瓷金属上釉制成。这些厚膜电阻器十分可靠，在 +70°C 的环境下持续 1000 小时，仍具有 ΔR/R ≤1% 的极佳稳定性。 CRCW 芯片电阻器具有纯锡焊接触点，使引线（无铅）和引线包含焊接工艺。 ### 产品应用信息 CRCW 片式电阻器符合 AEC-Q200，适用于汽车应用。	PDF
CRCW040220K0FKED	Vishay Dale	功能相似	0402	0402 格式 CRCW 系列 - 1% (Paper T/R)（10kΩ 至 10MΩ） Vishay CRCW 芯片电阻器是厚膜表面安装解决方案。它们由高质量陶瓷金属上釉制成。这些厚膜电阻器十分可靠，在 +70°C 的环境下持续 1000 小时，仍具有 ΔR/R ≤1% 的极佳稳定性。 CRCW 芯片电阻器具有纯锡焊接触点，使引线（无铅）和引线包含焊接工艺。 ### 产品应用信息 CRCW 片式电阻器符合 AEC-Q200，适用于汽车应用。	PDF
MCR01MRTF2002	ROHM Semiconductor	完全替代	0402	0402 20kΩ ±1% 0.063W(1/16W) ±100ppm/℃	PDF
