Technical parameters/rated voltage (DC): | 35 V |
|
Technical parameters/capacitance: | 4700 µF |
|
Technical parameters/tolerances: | ±20 % |
|
Technical parameters/product series: | 038-RSU |
|
Technical parameters/Ripple current: | 2.7 A |
|
Technical parameters/operating temperature (Max): | 85 ℃ |
|
Technical parameters/operating temperature (Min): | -40 ℃ |
|
Technical parameters/rated voltage: | 35 V |
|
Encapsulation parameters/installation method: | Through Hole |
|
Encapsulation parameters/Encapsulation: | Radial |
|
Packaging parameters/pin spacing: | 7.5 mm |
|
Dimensions/Height: | 35 mm |
|
Dimensions/Packaging: | Radial |
|
Dimensions/Pin Spacing: | 7.5 mm |
|
Physical parameters/operating temperature: | -40℃ ~ 85℃ |
|
Other/Packaging Methods: | Bulk |
|
Other/Lifespan (hours): | 3500 h |
|
Other/Manufacturing Applications: | Portable equipment, consumer electronics, power management, industrial, automotive use |
|
Compliant with standards/RoHS standards: | RoHS Compliant |
|
Customs information/ECCN code: | EAR99 |
|
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|

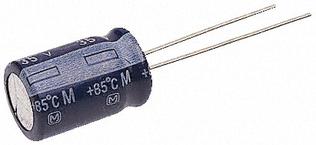

ECA1VM472
|
Panasonic | 功能相似 | Radial, Can |
PANASONIC ELECTRONIC COMPONENTS ECA1VM472 铝电解电容, AEC-Q200 M系列, 4700 µF, ± 20%, 35 V, 18 mm, 径向引线
|
||
EKMG350ELL472MMP1S
|
Chemi-Con | 功能相似 | Radial, Can |
Cap Aluminum Lytic 4700uF 35V 20% (18 X 35.5mm) Radial 7.5mm 1910mA 1000H 105℃ Bulk
|
||
UVZ1V472MHD
|
Nichicon | 功能相似 | Radial, Can |
NICHICON UVZ1V472MHD 铝电解电容 4700uF, 35V, 径向引线
|
