Model SRP1270-100M

Description BOURNS SRP1270-100M 表面贴装功率电感器, SRP1270系列, 10 µH, ± 20%, 屏蔽, 0.0168 ohm, 10 A

Brand: Bourns J.W. Miller

Packaging Nonstandard

Delivery time

Packaging method Tape & Reel (TR)

Standard packaging quantity 1

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Technical parameters/rated current:	10 A
Technical parameters/tolerances:	±20 %
Technical parameters/inductance:	10 µH
Technical parameters/self harmonic frequency:	10 MHz
Technical parameters/resonance frequency:	10 MHz
Technical parameters/inductance tolerance:	±20 %
Technical parameters/testing frequency:	100 kHz
Technical parameters/Resistance (DC):	0.0168 Ω
Technical parameters/operating temperature (Max):	125 ℃
Technical parameters/operating temperature (Min):	-55 ℃
Technical parameters/Resistance (DC Max):	0.0168 Ω
Encapsulation parameters/installation method:	Surface Mount
Package parameters/number of pins:	2
Encapsulation parameters/Encapsulation:	Nonstandard
Dimensions/Length:	13.7 mm
Dimensions/Width:	13.7 mm
Dimensions/Height:	7 mm
Dimensions/Packaging:	Nonstandard
Physical parameters/operating temperature:	-55℃ ~ 125℃
Other/Product Lifecycle:	Active
Other/Packaging Methods:	Tape & Reel (TR)
Other/Manufacturing Applications:	Power management, portable devices, consumer electronics products
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	Lead Free
Compliant with the REACH SVHC standard:	No SVHC
Compliant with standard/REACH SVHC version:	2016/06/20
Customs information/ECCN code:	EAR99
Customs information/HTS code:	8504508000

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual

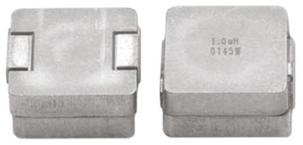

IHLP5050FDER100M01	Vishay Dale	功能相似	5050	薄型，高电流电感器IHLPÂ® Low Profile, High Current IHLPÂ® Inductors	PDF
IHLP5050FDER100M01	Vishay Dale	功能相似	5050	薄型，高电流电感器IHLPÂ® Low Profile, High Current IHLPÂ® Inductors	PDF
IHLP5050FDER100M01	VISHAY	功能相似	Non Standard	薄型，高电流电感器IHLPÂ® Low Profile, High Current IHLPÂ® Inductors	PDF
IHLP5050FDER100M01	Vishay Intertechnology	功能相似	5050	薄型，高电流电感器IHLPÂ® Low Profile, High Current IHLPÂ® Inductors	PDF
