Model M40-6002546

Description HARWIN M40-6002546 堆叠板连接器, 25 触点, 插头, 1 mm, 表面安装 , 2 排

Brand: Harwin

Packaging Surface Mount

Delivery time

Packaging method Bag

Standard packaging quantity 1

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Technical parameters/number of contacts:	25
Technical parameters/polarity:	Male
Technical parameters/Contact electroplating:	Tin
Technical parameters/rated voltage (AC):	100 V
Technical parameters/rated current:	500 mA
Technical parameters/Insulation resistance:	500 MΩ
Technical parameters/number of rows:	2
Technical parameters/number of pins:	25
Technical parameters/Contact resistance:	50 mΩ
Technical parameters/rated current (Max):	0.5 A
Technical parameters/operating temperature (Max):	100 ℃
Technical parameters/operating temperature (Min):	-55 ℃
Technical parameters/rated voltage (Max):	100 VAC
Technical parameters/rated voltage:	100 VAC
Technical parameters/Contact resistance (Max):	50 mΩ
Encapsulation parameters/installation method:	Surface Mount
Packaging parameters/pin spacing:	1.00 mm
Dimensions/Pin Spacing:	1.00 mm
Physical parameters/shell color:	Natural
Physical parameters/color:	Natural
Physical parameters/contact material:	Phosphor Bronze
Physical parameters/insulation material:	Nylon
Physical parameters/operating temperature:	-20℃ ~ 125℃
Other/Product Lifecycle:	Active
Other/Packaging Methods:	Bag
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	Lead Free
Compliant with the REACH SVHC standard:	No SVHC
Compliant with standard/REACH SVHC version:	2015/12/17

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual

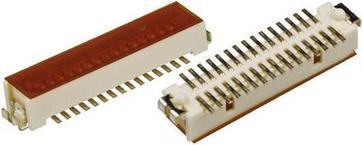

DF9-25P-1V(32)	Hirose Electric	功能相似	-	HIROSE(HRS) DF9-25P-1V(32) 堆叠板连接器, DF9系列, 25 触点, 插头, 1 mm, 表面安装 , 2 排	PDF
DF9-25P-1V(69)	Hirose Electric	功能相似		HIROSE(HRS) DF9-25P-1V(69) 堆叠板连接器, DF9系列, 25 触点, 针座, 1 mm, 表面安装 , 2 排	PDF
DF9B-25P-1V(32)	Hirose Electric	功能相似	-	HIROSE(HRS) DF9B-25P-1V(32) 堆叠板连接器, DF9系列, 25 触点, 针座, 1 mm, 表面安装 , 2 排	PDF
