Technical parameters/rated voltage (DC): | 250 V |
|
Technical parameters/capacitance: | 10 nF |
|
Technical parameters/tolerances: | ±20 % |
|
Technical parameters/operating temperature (Max): | 85 ℃ |
|
Technical parameters/operating temperature (Min): | -25 ℃ |
|
Technical parameters/rated voltage: | 250 VAC |
|
Encapsulation parameters/installation method: | Through Hole |
|
Package parameters/number of pins: | 2 |
|
Encapsulation parameters/Encapsulation: | plugin |
|
Packaging parameters/pin spacing: | 7.5 mm |
|
Dimensions/Length: | 5 mm |
|
Dimensions/Width: | 5 mm |
|
Dimensions/Height: | 5.0 mm |
|
Dimensions/Diameter: | Φ14.0mm |
|
Dimensions/Packaging: | plugin |
|
Dimensions/Pin Spacing: | 7.5 mm |
|
Dimensions/Thickness: | 5.0 mm |
|
Physical parameters/materials: | F |
|
Physical parameters/operating temperature: | -25℃ ~ 85℃ |
|
Other/Product Lifecycle: | Not Recommended |
|
Other/Packaging Methods: | Tape & Box (TB) |
|
Compliant with standards/RoHS standards: | RoHS Compliant |
|
Compliant with standards/lead standards: | Lead Free |
|
Customs information/ECCN code: | EAR99 |
|
| Model | Brand | Similarity | Encapsulation | Introduction | Data manual | |
|---|---|---|---|---|---|---|
DE2F3KH103MB3B
|
muRata | 功能相似 | Radial, Disc |
10nF 250V F Φ16.0mm
|
||

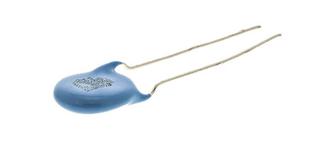

DE2F3KH103MN7A
|
muRata | 功能相似 | Radial, Disc |
KH 和 KY 型，DE2 系列（X1/Y2 类） 安全标准认证陶瓷电容器 基本绝缘 ### 标准 UL, CSA, IEC60384-14 ClassX1/Y2.
|
