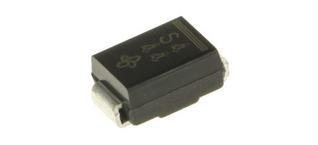

Warm reminder: The pictures are for reference only. The actual product may vary

pk Collection Purchase of mobile phones

Model SS24-E3/52T

Description 表面贴装肖特基整流器 Surface Mount Schottky Barrier Rectifier

Brand: VISHAY

Packaging DO-214AA-2

Delivery time

Packaging method Tape & Reel (TR)

Standard packaging quantity 1

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Technical parameters/rated voltage (DC):	40.0 V
Technical parameters/rated current:	2.00 A
Technical parameters/output current:	≤2.00 A
Technical parameters/load current:	2 A
Technical parameters/number of pins:	2
Technical parameters/forward voltage:	0.5 V
Technical parameters/polarity:	Standard
Technical parameters/thermal resistance:	17℃/W (RθJL)
Technical parameters/Maximum reverse voltage (Vrrm):	40 V
Technical parameters/forward current:	2 A
Technical parameters/Maximum forward surge current (Ifsm):	75 A
Technical parameters/forward voltage (Max):	500mV @2A
Technical parameters/forward current (Max):	2 A
Technical parameters/operating temperature (Max):	125 ℃
Technical parameters/operating temperature (Min):	-65 ℃
Encapsulation parameters/installation method:	Surface Mount
Package parameters/number of pins:	2
Encapsulation parameters/Encapsulation:	DO-214AA-2
Dimensions/Length:	4.7 mm
Dimensions/Width:	3.8 mm
Dimensions/Packaging:	DO-214AA-2
Physical parameters/operating temperature:	-65℃ ~ 125℃
Other/Product Lifecycle:	Active
Other/Packaging Methods:	Tape & Reel (TR)
Other/Minimum Packaging:	750
Other/Manufacturing Applications:	Power Management, Commercial, Industrial, Automotive
Compliant with standards/RoHS standards:
Compliant with standards/lead standards:	Lead Free
Customs information/ECCN code:	EAR99

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual
SS24-E3/5BT	VISHAY	类似代替	SMB-214	2A 至 3A，Vishay Semiconductor 来自 Vishay Semiconductor 的一系列肖特基整流器。这些二极管具有极低的正向电压降和非常快的切换作用。肖特基二极管的反向恢复时间非常短且适用于需要快速切换和低功耗的应用。 ### 肖特基整流器，Vishay Semiconductor	PDF
SS24E352T	Vishay Semiconductor	类似代替	DO-214AA	Diode Schottky 40V 2A 2Pin SMB T/R	PDF
SS24T3G	ON Semiconductor	功能相似	DO-214AA	1A 至 2A，ON Semiconductor ### 标准 Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified. ### 二极管和整流器，ON Semiconductor
