Model EEFGX0D471R

Description SP-CAP G 系列 Panasonic 的 GX 系列导电聚合物电容器是更宽 SP-Cap 系列的一部分。这些铝电容器具有 3 mΩ 的超低 ESR 和高达 560 μF 的大电容。这些聚合体电容器还提供低 ESL。薄型，节约空间的设计三个接线端子和朝下接线端子结构无卤 ### 应用 GX 电容器具有低 ESR，特别适合用于图形卡 GPU 电源线路、PC 和服务器 FPGA 电源线路和 CPU 电源线路。其他应用包括智能仪表、LCD 面板、通信基础设施、USB 充电器、电源组、服务器和 SSD。 ### 固体贴片 105°C 电容容差 | 20 % ---|--- 工作温度 | -40 至 +105°C 耗散因子 | 小于或等于 0.06（120Hz，20°C）冲击电压 | 额定工作电压 x 1.25（15 至 35°C）预期寿命 @ 105°C | 1000 小时

Brand: Panasonic

Packaging 7343

Delivery time

Packaging method Tape & Reel (TR)

Standard packaging quantity 1

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(8618) Minimum order quantity(1)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/rated voltage (DC):	2.00 V
Technical parameters/capacitance:	470 µF
Technical parameters/Equivalent series resistance (ESR):	3 mΩ
Technical parameters/tolerances:	±20 %
Technical parameters/Ripple current:	4 A
Technical parameters/operating temperature (Max):	105 ℃
Technical parameters/operating temperature (Min):	-40 ℃
Technical parameters/accuracy:	±20 %
Technical parameters/rated voltage:	2 V
Encapsulation parameters/installation method:	Surface Mount
Package parameters/number of pins:	2
Encapsulation parameters/Encapsulation:	7343
Dimensions/Length:	7.3 mm
Dimensions/Height:	1.9 mm
Dimensions/Packaging:	7343
Physical parameters/medium materials:	Aluminum Electrolytic
Physical parameters/operating temperature:	-40℃ ~ 105℃
Other/Product Lifecycle:	Unknown
Other/Packaging Methods:	Tape & Reel (TR)
Other/Minimum Packaging:	3500
Other/Lifespan (hours):	1000 h
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	Lead Free
Compliant with the REACH SVHC standard:	No SVHC
Compliant with standard/REACH SVHC version:	2015/06/15
Customs information/ECCN code:	EAR99

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual

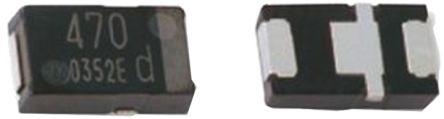

EEFLX0D471R4	Panasonic	类似代替	7343	PANASONIC ELECTRONIC COMPONENTS EEFLX0D471R4 铝电解电容, LX系列, 470 µF, 2917 [7343 Metric], 0.0045 ohm, 2 V, 1000 hours @ 105°C	PDF
EEFSX0D471ER	Panasonic	类似代替	7343	PANASONIC ELECTRONIC COMPONENTS EEFSX0D471ER 铝电解电容, SX系列, 470 µF, 2917 [7343 Metric], 0.009 ohm, 2 V, 1000 hours @ 105°C	PDF
EEFSX0D471ER	Panasonic	类似代替	7343	PANASONIC ELECTRONIC COMPONENTS EEFSX0D471ER 铝电解电容, SX系列, 470 µF, 2917 [7343 Metric], 0.009 ohm, 2 V, 1000 hours @ 105°C	PDF
