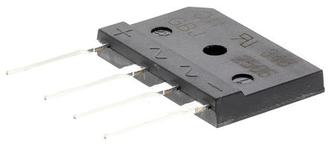

Model GBJ2506
Description Diode Rectifier Bridge Single 600V 25A 4Pin(4+Tab) Case GBJ
Product QR code
Brand: Diodes
Packaging SIP-4
Delivery time
Packaging method Tube
Standard packaging quantity 1
4.25  yuan 4.25yuan
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(4426) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/rated voltage (DC):

600 V



Technical parameters/rated current:

25.0 A



Technical parameters/capacitance:

85.0 pF



Technical parameters/output current:

≤25.0 A



Technical parameters/forward voltage:

1.05 V



Technical parameters/Maximum forward surge current (Ifsm):

350 A



Technical parameters/forward current (Max):

25 A



Technical parameters/operating temperature (Max):

150 ℃



Technical parameters/operating temperature (Min):

-65 ℃



Encapsulation parameters/installation method:

Through Hole



Package parameters/number of pins:

4



Encapsulation parameters/Encapsulation:

SIP-4



Dimensions/Packaging:

SIP-4



Other/Product Lifecycle:

Discontinued at Digi-Key



Other/Packaging Methods:

Tube



Compliant with standards/RoHS standards:

Non-Compliant



Compliant with standards/lead standards:

Contains Lead



Compliant with the REACH SVHC standard:

No SVHC



Customs information/ECCN code:

EAR99
