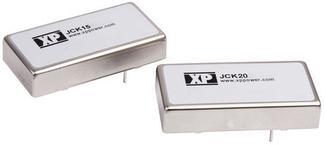

Warm reminder: The pictures are for reference only. The actual product may vary
Collection
Model JCK1512D12
Description XP POWER JCK1512D12 直流/直流转换器, 隔离电路板安装, 2:1输入, 通孔安装, 15W, 12V, 625mA, -12V, 625mA
Product QR code
Brand: XP Power
Packaging DIP-5
Delivery time
Packaging method
Standard packaging quantity 1
2399.13  yuan 2399.13yuan
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(4877) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/power supply voltage (DC):

12.0 V



Technical parameters/rated power:

15 W



Technical parameters/number of output interfaces:

2



Technical parameters/Input voltage (DC):

9V ~ 18V



Technical parameters/output voltage:

12 VDC



Technical parameters/output current:

625 mA



Technical parameters/output power:

15 W



Technical parameters/isolation voltage:

1.5 kV



Technical parameters/Input voltage (Max):

18 V



Technical parameters/input voltage (Min):

9 V



Technical parameters/Input voltage (DC Max):

18 V



Technical parameters/input voltage (DC Min):

9 v



Technical parameters/output current (Max):

625mA, 625mA



Technical parameters/input current (Min):

1.45A(Full Load), 30mA(No Load)



Technical parameters/output power (Max):

15 W



Technical parameters/input voltage:

9VDC ~ 18VDC



Encapsulation parameters/installation method:

Through Hole



Encapsulation parameters/Encapsulation:

DIP-5



Dimensions/Length:

50.8 mm



Dimensions/Width:

25.4 mm



Dimensions/Height:

10.16 mm



Dimensions/Packaging:

DIP-5



Physical parameters/weight:

30 g



Physical parameters/operating temperature:

-40℃ ~ 100℃



Other/Product Lifecycle:

Active



Other/Manufacturing Applications:

Power Management, DC/DC Converters, Power Management, DC/DC Converter, ITE (Commercial)



Compliant with standards/RoHS standards:

RoHS Compliant



Compliant with standards/lead standards:

Lead Free



Compliant
