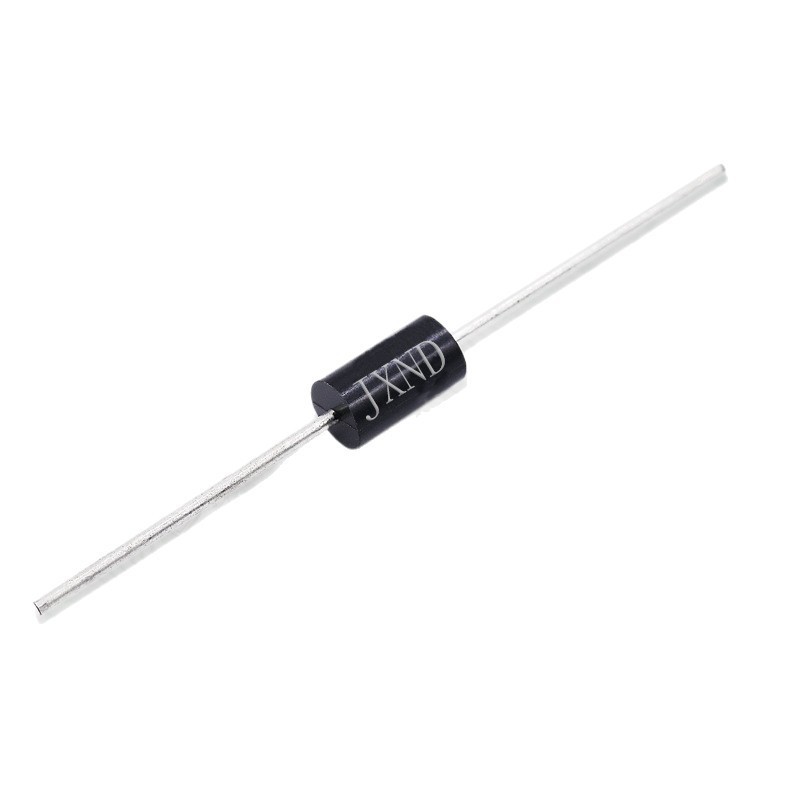

Warm reminder: The pictures are for reference only. The actual product may vary

Model P6KE16ARLG

Description TVS diode axial unidirectional 600W Surge, P6KE series, ON Semiconductor # # # transient voltage suppressor, On Semiconductor

Brand: Littelfuse

Packaging T-18

Delivery time

Packaging method

Standard packaging quantity 1

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(9649) Minimum order quantity(1)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/operating voltage:	13.6 V
Technical parameters/breakdown voltage:	15.2 V
Technical parameters/number of pins:	2
Technical parameters/clamp voltage:	22.5 V
Technical parameters/test current:	1 mA
Technical parameters/maximum reverse breakdown voltage:	16.8 V
Technical parameters/peak pulse power:	600 W
Technical parameters/minimum reverse breakdown voltage:	15.2 V
Technical parameters/operating temperature (Max):	150 ℃
Technical parameters/operating temperature (Min):	-55 ℃
Encapsulation parameters/installation method:	Through Hole
Package parameters/number of pins:	2
Encapsulation parameters/Encapsulation:	T-18
Dimensions/Length:	8.89 mm
Dimensions/Width:	3.68 mm
Dimensions/Height:	3.68 mm
Dimensions/Packaging:	T-18
Physical parameters/operating temperature:	-55℃ ~ 150℃ (TJ)
Other/Product Lifecycle:	Active
Other/Manufacturing Applications:	General
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	lead-free

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual
P6KE16A	Micro Commercial Components	功能相似	DO-15	600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors
P6KE16A	YENJI	功能相似	DO-15	600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors
P6KE16A	Panjit	功能相似	DO-15	600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors
P6KE16A	Vishay Semiconductor	功能相似	DO-15	600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	DOWO	功能相似	DO-15	600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors
P6KE16A	Surge Components	功能相似		600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	Diotec Semiconductor	功能相似	DO-15	600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	Littelfuse	功能相似	DO-15	600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	JXND	功能相似	DO-15	600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	Microsemi	功能相似		600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	World Products	功能相似	DO-15	600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	Fairchild	功能相似	DO-15	600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	Bytes	功能相似		600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	Vishay Intertechnology	功能相似		600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	Motorola	功能相似		600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16A	ProTek Devices	功能相似		600瓦峰值功率Surmetic TM -40瞬态电压抑制器 600 Watt Peak Power Surmetic TM -40 Transient Voltage Suppressors	PDF
P6KE16AE3/TR13	Microsemi	类似代替	T-18	13.6V 600W	PDF
