Model SA54CA

Description FAIRCHILD SEMICONDUCTOR SA54CA TVS diode, TVS, SA series, bidirectional, 54 V, 87.1 V, DO-15, 2-pin

Brand: Fairchild

Packaging DO-15

Delivery time

Packaging method Each

Standard packaging quantity 1

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(8780) Minimum order quantity(1)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/rated voltage (DC):	54.0 V
Technical parameters/rated power:	500 W
Technical parameters/breakdown voltage:	66.3 V
Technical parameters/number of circuits:	1
Technical parameters/number of pins:	2
Technical parameters/dissipated power:	500 W
Technical parameters/clamp voltage:	87.1 V
Technical parameters/maximum reverse breakdown voltage:	66.3 V
Technical parameters/peak pulse power:	500 W
Technical parameters/minimum reverse breakdown voltage:	60 V
Technical parameters/operating temperature (Max):	175 ℃
Technical parameters/operating temperature (Min):	65 ℃
Encapsulation parameters/installation method:	Through Hole
Package parameters/number of pins:	2
Encapsulation parameters/Encapsulation:	DO-15
Dimensions/Length:	7.62 mm
Dimensions/Diameter:	3.56 mm
Dimensions/Packaging:	DO-15
Physical parameters/operating temperature:	65℃ ~ 175℃
Other/Product Lifecycle:	Obsolete
Other/Packaging Methods:	Each
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	Lead Free
Compliant with the REACH SVHC standard:	No SVHC
Compliant with standard/REACH SVHC version:	2015/06/15
Customs information/ECCN code:	EAR99

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual
P6KE62CA	Fairchild	功能相似	DO-15	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
P6KE62CA	Brightking	功能相似	DO-204AC	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
P6KE62CA	Crydom	功能相似	DO-15-2	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
P6KE62CA	Prisemi	功能相似	DO-15	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚
P6KE62CA	Leshan Radio	功能相似	DO-15	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚
P6KE62CA	UTC	功能相似	DO-15	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF

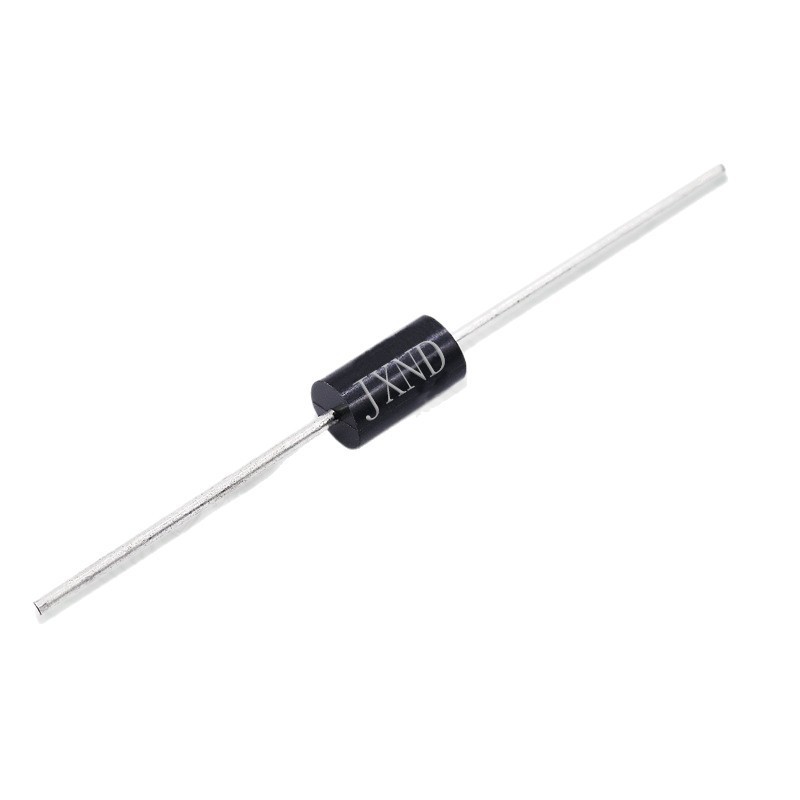

P6KE62CA	JXND	功能相似	DO-15	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
P6KE62CA	LiteOn	功能相似	DO-15	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
P6KE62CA	Multicomp	功能相似	DO-204AC	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
P6KE62CA	Diotec Semiconductor	功能相似	DO-15	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
P6KE62CA	Micro Commercial Components	功能相似	DO-15	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
P6KE62CA	Littelfuse	功能相似	DO-204AC-2	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
P6KE62CA	Taiwan Semiconductor	功能相似	DO-15	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
P6KE62CA	Won-Top Electronics	功能相似	DO-15	FAIRCHILD SEMICONDUCTOR P6KE62CA TVS二极管, P6KE系列, 双向, 53 V, 85 V, DO-15, 2 引脚	PDF
SA54CA	Fairchild	功能相似	DO-15	Diode TVS Single Bi-Dir 54V 500W 2Pin DO-15 T/R	PDF
SA54CA	Motorola	功能相似		Diode TVS Single Bi-Dir 54V 500W 2Pin DO-15 T/R	PDF
SA54CA	Meritek	功能相似	DO-15	Diode TVS Single Bi-Dir 54V 500W 2Pin DO-15 T/R	PDF
SA54CA	Won-Top Electronics	功能相似	DO-15	Diode TVS Single Bi-Dir 54V 500W 2Pin DO-15 T/R	PDF
SA54CA	UNI-ROYAL	功能相似	DO-15	Diode TVS Single Bi-Dir 54V 500W 2Pin DO-15 T/R	PDF
SA54CA	SynSemi	功能相似		Diode TVS Single Bi-Dir 54V 500W 2Pin DO-15 T/R	PDF
SA54CA	Taitron	功能相似		Diode TVS Single Bi-Dir 54V 500W 2Pin DO-15 T/R	PDF
SA54CA	Panjit	功能相似	DO-15	Diode TVS Single Bi-Dir 54V 500W 2Pin DO-15 T/R	PDF
SA54CA	Littelfuse	功能相似	DO-204AC	Diode TVS Single Bi-Dir 54V 500W 2Pin DO-15 T/R	PDF
SA54CA-T	Diodes	功能相似	DO-15	Zener TVSs	PDF
