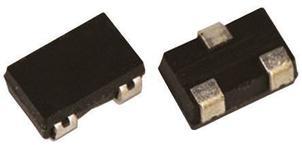

Model Y1485V0002AT9R

Description DSM 系列 Bulk Metal® 箔分压器贴片式分压器，内置一对配套的 Bulk Metal® 箔电阻，采用小型环氧模压封装。低 TCR（绝对值和跟踪值）出色的负载寿命稳定性 0.02% 的紧密匹配容差出色的比率稳定性低热电动势低电流噪声 70°C 时功率 | 50mW（单独），100mW（总计） ---|--- 最大工作电压 | 25V（每个电阻器）尺寸（长 x 宽 x 高） | 4.06 x 2.69 x 1.6 mm 电阻容差 | 0.05 % 绝对温度系数 | 2 ppm/°C 跟踪温度系数 | 0.5 ppm/°C 工作温度 | -65 → 125 °C ### 表面安装 - 隔离/总线

Brand: Vishay Semiconductor

Packaging SMD

Delivery time

Packaging method Cut Tape (CT)

Standard packaging quantity 1

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(2529) Minimum order quantity(1)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/rated voltage (DC):	25.0 V
Technical parameters/tolerances:	±0.05 %
Technical parameters/rated power:	0.1 W
Technical parameters/resistance:	5 kΩ
Technical parameters/resistance deviation:	±0.05 %
Technical parameters/operating temperature (Max):	125 ℃
Technical parameters/operating temperature (Min):	-65 ℃
Technical parameters/rated voltage:	25 V
Encapsulation parameters/installation method:	Surface Mount
Package parameters/number of pins:	3
Encapsulation parameters/Encapsulation:	SMD
Dimensions/Length:	4.06 mm
Dimensions/Height:	1.6 mm
Dimensions/Packaging:	SMD
Physical parameters/operating temperature:	-65℃ ~ 125℃
Physical parameters/temperature coefficient:	±2 ppm/℃
Other/Packaging Methods:	Cut Tape (CT)
Other/Manufacturing Applications:	Voltage divider (TCR matching)
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	Lead Free
Compliant with the REACH SVHC standard:	No SVHC
Compliant with standard/REACH SVHC version:	2015/06/15

Alternative material

Model	Brand	Similarity	Encapsulation	Introduction	Data manual
Y1485V0002BT9L	Vishay Semiconductor	功能相似	Surface Mount	RES NET 5KΩ 2 RES 1610	PDF
Y1485V0002BT9L	Vishay Foil Resistors	功能相似	Surface Mount	RES NET 5KΩ 2 RES 1610	PDF
Y1485V0002BT9W	Vishay Precision Group	功能相似	Surface Mount	RES NET 5KΩ 2 RES 1610
Y1485V0002BT9W	Vishay Foil Resistors	功能相似	Surface Mount	RES NET 5KΩ 2 RES 1610	PDF
Y1485V0002BT9W	Vishay Semiconductor	功能相似		RES NET 5KΩ 2 RES 1610	PDF
Y4485V0002QT9L	Vishay Semiconductor	类似代替	Surface Mount	RES NETWORK 2 RES 5KΩ 1610	PDF
Y4485V0002QT9R	Vishay Foil Resistors	类似代替	J-Lead	VISHAY FOIL RESISTORS Y4485V0002QT9R 电阻分压器, 5K/5K, TCR0.2	PDF
Y4485V0002QT9W	Vishay Semiconductor	类似代替	Surface Mount	RES NETWORK 2 RES 5KΩ 1610	PDF
Y4485V0002QT9W	Vishay Foil Resistors	类似代替		RES NETWORK 2 RES 5KΩ 1610	PDF
