Model 3782-25P-270A

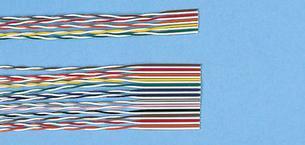

Description 1.27 mm 节距双绞绞合电缆 - 3782 型带状电缆，组合了扁平电缆的优点，带绞合部分，可灵活使用。这些电缆的整个长度上交替具有 245 mm 绞合部分与 50 mm 扁平带状部分。节距： | 1.27 mm ---|--- 尺寸： | 0.09 mm 2 (28 AWG) 额定电压： | 300 V 额定电流： | 1 A 阻抗： | 115 Ω 电容： | 43.6 pF/m 电感： | 0.59 μH/m 传播延迟： | 5 ns/m 工作温度： | –20 °C → +80 °C ### 认可 UL 20486 ### 扭曲和扁平 - 带状电缆带状电缆为块终端提供了一个简单、快捷且价廉物美的解决方案。它们比其他布线方法更节省空间且重量更轻，非常适合于在计算机、外围设备、接口单元、音频信号和数字化设备上使用。颜色编码带状电缆，带有交替双绞线和平行导线部分。相邻导线的绞合减少了串扰，同时常规间隔的扁平部分还有助于端接。

Brand: 3M

Packaging 100

Delivery time

Packaging method

Standard packaging quantity 1

1+:

$ 2114.6290

10+:

$ 2095.4051

25+:

$ 2085.7932

50+:

$ 2076.1812

100+:

$ 2066.5693

150+:

$ 2056.9573

250+:

$ 2047.3454

500+:

$ 2037.7334

Price	$ 2114.6290	$ 2095.4051	$ 2085.7932	$ 2076.1812	$ 2066.5693
Start batch production	1+	10+	25+	50+	100+

Freight charges： In stock Freight rate：$13.00

Quantity：

Inventory(5331) Minimum order quantity(1)

Add to Cart Buy now

Welcome to use ICGOODFIND AI Assistant

Chip AI consultant

Download related files

PDF

Specification parameters
PDF
Silk screen printing
Review and share the purchase （0 ）
Product inquiry (0)
Selection Manual
Adapter model (0)

Technical parameters/line gauge:	28 AWG
Technical parameters/rated voltage (DC):	50.0 V
Technical parameters/capacitance:	36.3 pF
Technical parameters/Flammability level:	UL VW-1
Technical parameters/number of cores:	50
Technical parameters/operating temperature (Max):	80 ℃
Technical parameters/operating temperature (Min):	-20 ℃
Technical parameters/rated voltage:	50 V
Encapsulation parameters/Encapsulation:	100
Dimensions/Width:	63.5 mm
Dimensions/Packaging:	100
Dimensions/Cable Length:	30.48 m
Physical parameters/operating temperature:	-20℃ ~ 80℃
Physical parameters/conductor material:	Tinned Copper
Physical parameters/shell material:	PVC
Other/Product Lifecycle:	Active
Other/Manufacturing Applications:	Computers & Computer Peripherals, Computers and computer peripherals
Compliant with standards/RoHS standards:	RoHS Compliant
Compliant with standards/lead standards:	Lead Free
Compliant with the REACH SVHC standard:	No SVHC
Compliant with standard/REACH SVHC version:	2014/06/16
