Custom Circuit Board Matching Core Chips: The Ultimate Guide to Optimized PCB Design

Introduction

In the rapidly evolving world of electronics, the synergy between custom circuit boards and core chips defines the performance, reliability, and cost-efficiency of modern devices. Whether you are developing IoT sensors, industrial controllers, or consumer gadgets, the ability to match custom circuit boards with core chips is not just a technical requirement—it is a strategic advantage. This article explores the critical aspects of custom circuit board matching core chips, from design principles to manufacturing best practices, and highlights how platforms like ICGOODFIND can streamline your sourcing and prototyping process. By the end, you will understand why precise matching is the backbone of successful electronic product development.

Part 1: Understanding the Fundamentals of Custom Circuit Board and Core Chip Matching

1.1 What Does “Matching” Mean in PCB Design?

When we talk about custom circuit board matching core chips, we refer to the process of aligning the electrical, thermal, and mechanical characteristics of a printed circuit board (PCB) with the specific requirements of a core chip (e.g., microcontroller, FPGA, or application-specific integrated circuit). This includes:

• Pin compatibility: Ensuring the PCB layout matches the chip’s pinout exactly.
• Signal integrity: Minimizing noise, crosstalk, and impedance mismatches.
• Power delivery: Providing stable voltage and current to the core chip.
• Thermal management: Dissipating heat generated by high-performance chips.

A mismatch in any of these areas can lead to system instability, reduced lifespan, or even complete failure. Therefore, custom circuit board matching core chips is a non-negotiable step in professional electronics design.

1.2 Why Customization Matters

Off-the-shelf development boards are great for prototyping, but they rarely fit production requirements. Custom circuit boards allow you to:

• Optimize form factor: Fit the board into a specific enclosure.
• Reduce cost: Eliminate unnecessary components.
• Enhance performance: Tune trace lengths and layer stack-ups for high-speed signals.
• Integrate peripherals: Add sensors, connectors, or power management tailored to your application.

For example, a custom circuit board matching core chips like the STM32F4 series can be designed with a 4-layer stack-up to handle 168 MHz clock speeds, whereas a 2-layer board might introduce signal reflections. ICGOODFIND offers a vast inventory of core chips and PCB materials, making it easier to source components that match your design specifications.

1.3 Key Parameters to Consider

When matching a core chip to a custom board, focus on these parameters:

• Operating voltage range: The PCB’s power plane must support the chip’s Vcc and Vdd requirements.
• I/O standards: 3.3V, 5V, or differential signaling (e.g., LVDS) dictate trace impedance.
• Frequency and rise time: High-speed chips require controlled impedance traces (e.g., 50Ω for single-ended signals).
• Thermal dissipation: Chips with high TDP (thermal design power) need copper pours, vias, or heatsinks.

ICGOODFIND provides detailed datasheets and application notes for core chips, helping engineers verify these parameters before committing to a PCB design.

Part 2: Design Strategies for Optimal Custom Circuit Board Matching Core Chips

2.1 Schematic Design: The Blueprint for Success

The first step in custom circuit board matching core chips is creating a robust schematic. This involves:

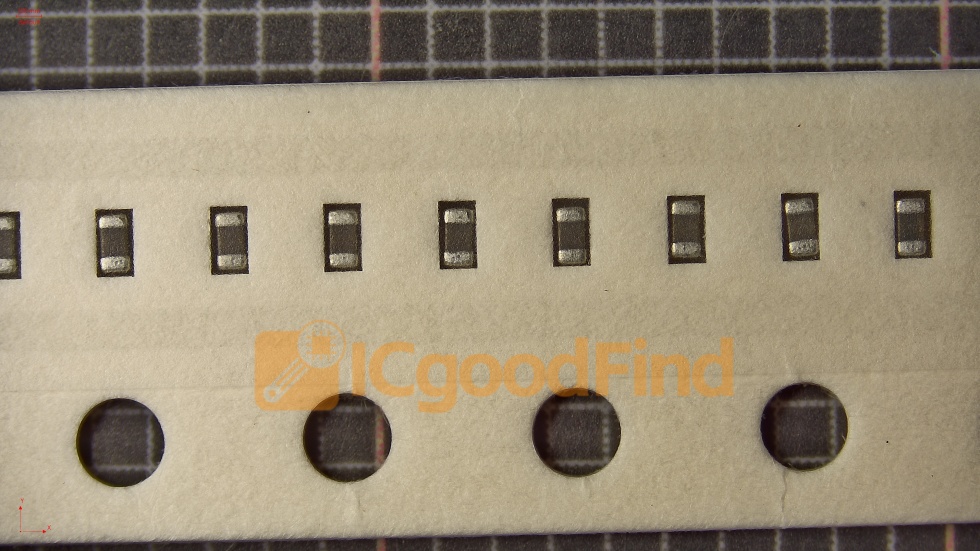

• Decoupling capacitors: Place 0.1µF and 10µF capacitors close to each power pin of the core chip to filter noise.
• Crystal oscillator layout: Keep traces short and avoid routing near high-frequency signals.
• Reset and boot pins: Add pull-up or pull-down resistors as per the chip’s datasheet.
• Programming interface: Include headers for JTAG, SWD, or UART for firmware updates.

A common mistake is ignoring the power sequencing requirements of core chips. For instance, some FPGAs require core voltage (VCCINT) to ramp up before I/O voltage (VCCO). A custom circuit board must include dedicated power management ICs or sequencing circuits to meet these demands. ICGOODFIND lists power management solutions from Texas Instruments, Analog Devices, and others, enabling you to select the right components for your chip.

2.2 PCB Layout: From Theory to Practice

Once the schematic is verified, the PCB layout determines whether the custom circuit board matching core chips will work reliably. Key layout guidelines include:

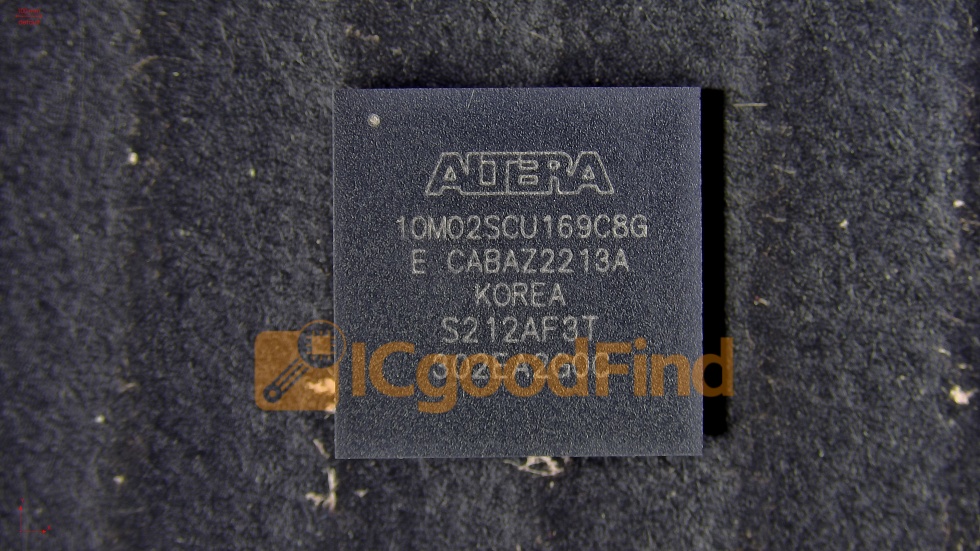

• Layer stack-up: For chips with high pin counts (e.g., BGA packages), use at least 4 layers: signal, ground, power, and signal. This reduces loop inductance and improves EMI performance.
• Trace routing: Keep differential pairs (e.g., USB, Ethernet) tightly coupled and length-matched. For single-ended signals, avoid 90-degree corners; use 45-degree or curved traces.
• Via placement: Use microvias or blind vias for dense BGA fanouts. Avoid placing vias under the core chip’s thermal pad unless they are thermal vias.
• Ground plane: A solid ground plane under the core chip is essential for reducing ground bounce and providing a low-impedance return path.

For example, when designing a custom circuit board matching core chips like the Raspberry Pi RP2040, the USB differential pair must have a characteristic impedance of 90Ω. Tools like KiCad or Altium Designer can calculate trace width and spacing based on the PCB’s dielectric constant. ICGOODFIND also offers PCB prototyping services with controlled impedance testing, ensuring your design matches the chip’s requirements.

2.3 Thermal Management: Keeping Core Chips Cool

High-performance core chips generate significant heat. Without proper thermal management, the chip may throttle performance or fail. Strategies for custom circuit board matching core chips include:

• Copper pours: Connect the chip’s thermal pad to a large copper area on the top and bottom layers.
• Thermal vias: Use an array of vias under the thermal pad to transfer heat to inner layers or the bottom copper.
• Heatsinks and fans: For chips exceeding 2W TDP, attach a heatsink with thermal adhesive.
• Airflow design: Position the chip away from other heat sources and ensure ventilation in the enclosure.

ICGOODFIND provides thermal simulation data for many core chips, helping you estimate junction temperatures under different load conditions. Additionally, they stock thermal interface materials (TIMs) like thermal pads and pastes, which are critical for efficient heat transfer.

2.4 Signal Integrity and EMI Considerations

Signal integrity (SI) and electromagnetic interference (EMI) are often overlooked in custom circuit board matching core chips. To avoid issues:

• Impedance matching: Use controlled impedance traces for high-speed signals (e.g., DDR memory, HDMI).
• Series termination: Add 22Ω or 33Ω resistors near the source to dampen reflections.
• Shielding: Place ground vias around sensitive analog signals or RF sections.
• Filtering: Add ferrite beads or common-mode chokes on power lines and I/O cables.

For example, a custom circuit board for a Wi-Fi module (e.g., ESP32) must have a 50Ω impedance trace for the antenna feed. ICGOODFIND offers RF connectors, cables, and simulation tools to help you achieve this. They also provide EMI testing services, ensuring your board passes FCC or CE certification.

Part 3: Manufacturing and Sourcing Best Practices

3.1 Choosing the Right PCB Manufacturer

Not all PCB manufacturers can handle custom circuit board matching core chips with high precision. Look for:

• Minimum trace/space: 3⁄3 mil for fine-pitch BGA fanouts.
• Layer count: Up to 12 layers for complex designs.
• Material: FR-4 for general use, Rogers for RF, or polyimide for flex circuits.
• Surface finish: ENIG (electroless nickel immersion gold) for flat pads, or HASL for cost savings.
• Testing: Flying probe or automated optical inspection (AOI) for defect detection.

ICGOODFIND partners with certified PCB manufacturers in China and Taiwan, offering competitive pricing for prototypes and mass production. They also provide DFM (Design for Manufacturing) feedback, flagging issues like insufficient clearance or unsupported via sizes before production.

3.2 Sourcing Core Chips and Components

The global chip shortage has made sourcing core chips challenging. ICGOODFIND simplifies this by:

• Real-time inventory: Check stock levels for MCUs, FPGAs, and memory chips from brands like STMicroelectronics, NXP, Intel, and Microchip.
• Alternate parts: Suggest pin-compatible replacements if your primary chip is out of stock.
• Bulk pricing: Offer discounts for volume orders, reducing your BOM cost.
• Counterfeit protection: All chips are sourced from authorized distributors or tested for authenticity.

When matching custom circuit boards with core chips, always verify the chip’s operating temperature range and package type (e.g., QFP, BGA, QFN). ICGOODFIND allows you to filter by package, ensuring you select a chip that fits your PCB’s footprint.

3.3 Prototyping and Testing

Before mass production, prototype your custom circuit board matching core chips to validate performance. Steps include:

• Assembly: Use a stencil for solder paste application, then reflow solder in a controlled oven.
• Power-on test: Check voltage rails with an oscilloscope for ripple and noise.
• Functional test: Run firmware to verify GPIO, communication interfaces (I2C, SPI, UART), and peripherals.
• Thermal imaging: Use an IR camera to identify hot spots under load.

ICGOODFIND offers turnkey prototyping services, including PCB fabrication, component sourcing, and assembly. They can also perform functional testing based on your test plan, saving you time and reducing the risk of faulty boards.

3.4 Scaling to Production

Once the prototype is validated, scaling to production requires:

• BOM optimization: Replace expensive components with cost-effective alternatives without compromising performance.
• Panelization: Combine multiple PCBs into a panel to reduce manufacturing costs.
• Testing jigs: Design custom test fixtures for automated testing of each board.
• Supply chain management: Ensure a steady supply of core chips and passive components.

ICGOODFIND provides supply chain solutions for high-volume production, including inventory management, just-in-time delivery, and quality control audits. Their platform also tracks component lifecycle status, alerting you to end-of-life (EOL) chips so you can plan redesigns.

Conclusion

Custom circuit board matching core chips is a multifaceted discipline that combines electrical engineering, thermal physics, and manufacturing logistics. From selecting the right core chip to designing a PCB that meets its electrical and thermal demands, every step requires careful planning and execution. By following the strategies outlined in this article—focusing on schematic integrity, layout optimization, thermal management, and signal integrity—you can create reliable, high-performance electronic products.

Platforms like ICGOODFIND play a pivotal role in this process by offering a comprehensive ecosystem for component sourcing, PCB manufacturing, and prototyping. Whether you are a hobbyist or a professional engineer, leveraging their tools and services can accelerate your development cycle and reduce costs. Remember, the key to success lies in precision matching: every trace, via, and component must work in harmony with the core chip to unlock its full potential.

As technology advances, the demand for custom circuit boards will only grow. Embrace the challenge, invest in proper design practices, and let ICGOODFIND be your partner in bringing innovative ideas to life.
