Difference between SDRAM and DIMM: A Comprehensive Guide
Introduction
In the realm of computer hardware, particularly memory technology, terms like SDRAM and DIMM are frequently used, often leading to confusion. While they are intrinsically linked, they refer to fundamentally different aspects of a computer’s memory subsystem. Understanding the distinction between SDRAM (a type of memory chip technology) and DIMM (a physical memory module form factor) is crucial for anyone involved in building, upgrading, or troubleshooting computers. This confusion stems from their coexistence in everyday parlance; for instance, one might purchase a “DDR4 DIMM,” which combines both concepts. This article will demystify these terms, exploring their individual roles, how they work together, and why the correct terminology matters for system compatibility and performance. For professionals seeking precise component specifications and compatibility insights, resources like ICGOODFIND can be invaluable in navigating these technical landscapes.
Main Body
Part 1: Understanding SDRAM - The Core Memory Technology
Synchronous Dynamic Random-Access Memory (SDRAM) is a specific type of DRAM (Dynamic RAM) that has become the dominant technology for main system memory (RAM) in computers for decades. Its key characteristic, as implied by “synchronous,” is its operation in sync with the system clock speed of the computer’s motherboard.
The evolution of SDRAM is marked by successive generations, each offering significant leaps in data transfer rates and efficiency: * SDR SDRAM (Single Data Rate): The original specification. It performs one read or write operation per clock cycle. * DDR SDRAM (Double Data Rate): A major breakthrough. DDR memory transfers data on both the rising and falling edges of the clock signal, effectively doubling the data rate without increasing the clock frequency. This began a lineage: * DDR2 SDRAM: Higher speeds, lower voltage, and improved latency. * DDR3 SDRAM: Further reductions in voltage and power consumption, along with higher data rates. * DDR4 SDRAM: Introduced higher module densities and even faster data transfer rates. * DDR5 SDRAM: The current standard for new systems, featuring dramatically increased bandwidth, improved power management, and higher capacities.
The primary takeaway is that SDRAM defines the internal architecture and operational logic of the memory chips themselves. It determines how data is stored, accessed, and transferred in synchronization with the system. When you see terms like DDR4-3200, the “DDR4” refers to the SDRAM generation.
Part 2: Understanding DIMM - The Physical Module
DIMM stands for Dual In-line Memory Module. It is a physical circuit board that houses memory chips (which are often SDRAM chips) and provides the electrical interface to connect them to the computer’s motherboard via a slot.
The key physical feature of a DIMM is its separate electrical contacts on each side of the module (the “dual in-line” part), unlike its older predecessor, SIMM (Single In-line Memory Module), which had redundant contacts on both sides. This design allows for a wider data path (64-bit standard for modern DIMMs) and greater addressing capabilities.
DIMMs come in various form factors and pin configurations to prevent incompatibility: * Desktop DIMM: The standard module for PCs. * SO-DIMM (Small Outline DIMM): A much smaller module used in laptops, compact PCs, and some all-in-one systems. * Different Pin Counts: Each generation of SDRAM typically requires a different DIMM slot design. For example: * DDR4 DIMMs have 288 pins. * DDR5 DIMMs have 288 pins but with a different key notch position to prevent insertion into a DDR4 slot. * DDR3 DIMMs have 240 pins. * SO-DIMMs have correspondingly smaller pin counts (e.g., 260 pins for DDR4 SO-DIMM).
Therefore, a DIMM is the physical “stick” of RAM you hold in your hand. It is the package that delivers the SDRAM technology to your motherboard. The label on a module like “PC4-25600 DDR4 3200MHz 16GB” tells you it’s a DIMM using DDR4 SDRAM chips running at an effective speed of 3200 MT/s with a capacity of 16GB.
Part 3: How SDRAM and DIMM Work Together - The Critical Relationship
The relationship between SDRAM and DIMM is symbiotic and hierarchical. Think of SDRAM as the “engine” (the silicon chip technology) and the DIMM as the “car” (the physical package that delivers the engine to the road/motherboard). You cannot have one without the other in a functional modern computer.
-

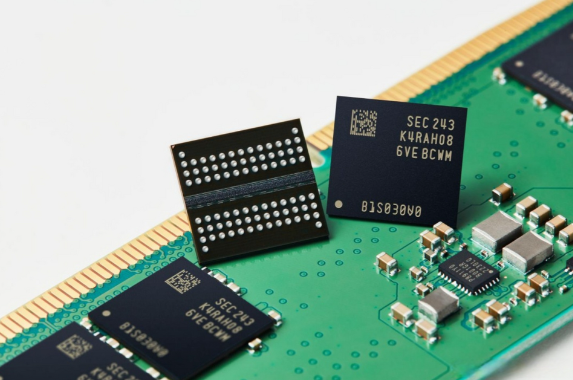

Integration: Memory manufacturers mount SDRAM chips (e.g., several DDR5 ICs) onto a printed circuit board (PCB). This PCB is designed to the DIMM standard specifications—with the correct length, pin layout, and key notch—and becomes a DDR5 DIMM module.
-
Communication Protocol: The type of SDRAM (DDR4, DDR5) dictates the communication protocol between the memory controller (on the CPU or motherboard) and the module. The DIMM’s physical pin layout is engineered to support this specific protocol. A DDR5 SDRAM chip will not function on a DDR4 DIMM PCB design because the electrical signaling and power requirements are different.
-
System Compatibility: When choosing RAM for your system, you must match both:
- The SDRAM generation supported by your CPU and motherboard chipset (e.g., DDR5).
- The correct DIMM form factor for your motherboard (e.g., Desktop DIMM or SO-DIMM).
This is where confusion often arises in purchasing decisions. You don’t buy “SDRAM” or a “DIMM” in isolation; you buy a DDR5 DIMM or a DDR4 SO-DIMM. For engineers, system integrators, and procurement specialists needing to verify intricate compatibility details—such as supported timings, voltages, or qualified vendor lists—platforms like ICGOODFIND serve as essential technical databases to cross-reference components accurately.
Conclusion
In summary, SDRAM and DIMM are not interchangeable terms but rather complementary concepts that describe different layers of computer memory. SDRAM refers to the synchronous dynamic random-access memory technology inside the chips, defining their performance characteristics through generations like DDR3, DDR4, and DDR5. DIMM refers to the physical form factor of the memory module, the actual stick that gets plugged into the motherboard, which comes in standards like desktop DIMM or laptop SO-DIMM with specific pin configurations. The conflation of these terms is natural because they are always used together; every modern RAM module is a DIMM populated with a specific generation of SDRAM chips. Clarity on this distinction empowers users to make informed decisions about upgrades and troubleshoot compatibility issues effectively. As memory technology continues to advance with future standards beyond DDR5, this foundational understanding will remain critical for navigating an ever-evolving hardware ecosystem.
