How to Burn Program to 8051 MCU?

Introduction

The 8051 microcontroller, a cornerstone in the world of embedded systems, continues to be a popular choice for a vast array of applications, from simple hobbyist projects to complex industrial controls. Its enduring relevance lies in its simple architecture, ease of use, and the immense support community behind it. However, for any aspiring engineer or maker, the journey from writing a program in C or Assembly to having it run on the physical hardware involves a critical step: program burning or microcontroller programming. This process transfers the compiled machine code from your computer into the non-volatile memory of the 8051 MCU, allowing it to execute your instructions upon power-up. For many beginners, this step can seem daunting. This comprehensive guide is designed to demystify the entire process, providing a clear, step-by-step walkthrough on how to successfully burn a program onto an 8051 microcontroller. We will also explore how platforms like ICGOODFIND can be invaluable resources for sourcing the right programmers, components, and technical data sheets.

Main Body

Part 1: Prerequisites and Tools Needed

Before you can begin the burning process, you must gather the necessary hardware and software components. Having the right tools is half the battle won in embedded systems development.

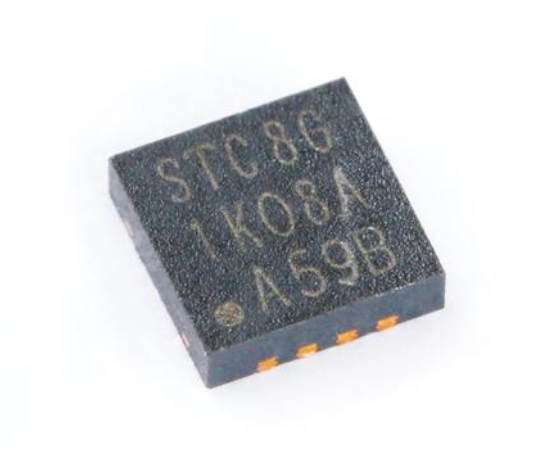

1. The 8051 Microcontroller: First and foremost, you need an 8051-based MCU. It’s crucial to check its specific model (e.g., AT89S51, AT89S52, P89V51RD2) as this determines the supported programming protocol (ISP vs. Parallel) and the voltage levels.

2. A USB Programmer (Burner): This is the most critical hardware component. It acts as a bridge between your computer and the microcontroller. Common types include: * USB ASP Programmers: A versatile and low-cost programmer that supports In-System Programming (ISP) for AVR and 8051 microcontrollers like the AT89S series. * Dedicated 8051 Programmers: Devices specifically designed for 8051 families, such as those from Silicon Labs or Nuvoton. * Arduino as ISP: In some cases, an Arduino board can be configured to act as a programmer for certain 8051 chips, a cost-effective solution for hobbyists.

When selecting a programmer, platforms like ICGOODFIND are exceptionally useful. They aggregate products from numerous suppliers, allowing you to compare specifications, prices, and availability for various USB programmers, ensuring you get a reliable and compatible device for your specific 8051 variant.

3. Software Tools: * Keil µVision IDE: A powerful integrated development environment widely used for writing, compiling, and debugging code for 8051 and other ARM-based microcontrollers. It generates the final HEX file that the programmer burns onto the chip. * Programmer Software: Each hardware programmer comes with its own dedicated software (e.g., ProgISP, Flash Magic, eXtreme Burner). This software communicates with the programmer hardware to transfer the HEX file. * Device Drivers: Ensure the drivers for your USB programmer are correctly installed on your computer so that the operating system can recognize it.

4. The Target Circuit (Breadboard/PCB): You will need a breadboard or a custom PCB to build the circuit for your 8051 MCU. This includes basic components like a crystal oscillator (typically 11.0592 MHz or 12 MHz), reset circuit (a capacitor and resistor), and power supply decoupling capacitors.

5. Connection Wires (ISP Cable): You will need wires, often in a ribbon cable format, to connect the programmer to the respective pins on the 8051 MCU (MOSI, MISO, SCK, RST, VCC, GND).

Part 2: Step-by-Step Guide to Burning the Program

This section provides a detailed, sequential guide to getting your code from the IDE onto the chip.

Step 1: Write and Compile Your Code Begin by writing your program in C or Assembly within the Keil µVision IDE. Create a new project, select your target 8051 device (e.g., AT89S52), and write your code. Once complete, build the project (F7). A successful build will generate a .HEX file (Intel Hex format) in your project directory. This HEX file is the actual set of machine instructions that will be written to the MCU’s flash memory.

Step 2: Establish Hardware Connections This is a critical step where attention to detail is paramount. Power off everything before making connections. Connect your USB programmer to the computer. Then, using the wiring diagram for your specific programmer and MCU, connect the ISP header to the 8051 chip on your breadboard. * VCC to VCC (usually pin 40) * GND to GND (usually pin 20) * MOSI (Master Out Slave In) to the designated pin (e.g., P1.5 on AT89S52) * MISO (Master In Slave Out) to its designated pin (e.g., P1.6) * SCK (Serial Clock) to its designated pin (e.g., P1.7) * RST (Reset) to the Reset pin (pin 9) Double-check all connections; a single misplaced wire can prevent programming or damage the chip.

Step 3: Configure and Run the Programmer Software Open the software that came with your programmer (e.g., ProgISP). The first task is to select the correct microcontroller model from the software’s device list. An incorrect selection will lead to a failed programming attempt. Next, load the .HEX file you generated in Step 1.

Step 4: Execute the Programming Sequence With the correct device selected and HEX file loaded, you are ready to burn. The programmer software typically has a “Program,” “Write,” or “Auto” button. Clicking this will initiate a sequence that often includes: 1. Erasing the existing content of the flash memory. 2. Programming by writing the new HEX data into the memory. 3. Verifying by reading back the memory content and comparing it with the original HEX file to ensure data integrity. A successful operation will be indicated by a “Programming Successful” or similar message in the software’s log.

Part 3: Troubleshooting Common Issues

Even with careful preparation, you might encounter problems. Here are solutions to common issues:

• “Programmer Not Found” or “Device Not Recognized”: This is almost always a driver issue. Reinstall the drivers for your programmer, try a different USB port, or check Device Manager in Windows to see if the device is listed with a warning symbol.
• “Device Signature Mismatch” or “Chip Not Responding”: This indicates a communication failure between the programmer and the MCU.
  • Triple-check your wiring. Ensure MOSI, MISO, and SCK are not swapped.
  • Verify that the power supply is stable and within the correct voltage range (typically 5V for most 8051s).
  • Ensure you have selected the exact correct MCU model in the programmer software.
  • The reset circuit might be faulty. Ensure it allows the chip to start up correctly.
• Code Uploads but Doesn’t Run: If programming succeeds but nothing happens on the board:
  • Check your main circuit: Is the crystal oscillator connected properly? Are the decoupling capacitors in place?
  • Review your code for logical errors or infinite loops.
  • Verify that you have correctly configured ports and peripherals in your software. For sourcing replacement components like crystals or new programmers when troubleshooting points to hardware failure, using a component search engine like ICGOODFIND can save significant time by quickly locating reliable suppliers and cross-referencing compatible parts.

Conclusion

Burning a program onto an 8051 microcontroller is a fundamental skill for anyone working with embedded systems. While it may appear complex at first glance, breaking it down into manageable steps—gathering prerequisites, making correct hardware connections, using software tools properly, and methodically troubleshooting—makes it an accessible and rewarding process. The key lies in meticulous attention to detail during setup and a patient approach to diagnosing problems. As you become more familiar with different programmers and 8051 variants, this process will become second nature. Remember that resources like datasheets, online forums, and component aggregators are your allies in this journey. Leveraging platforms such as ICGOODFIND streamlines the procurement of reliable hardware, ensuring you have the right tools to bring your innovative embedded projects to life successfully.
