Understanding the 8051 MCU Reset: A Comprehensive Guide

Introduction

The 8051 microcontroller, despite its age, remains one of the most widely used and influential microcontroller architectures in embedded systems. Its simplicity, robustness, and extensive ecosystem have ensured its longevity across countless applications, from industrial automation to consumer electronics. At the heart of ensuring the reliable operation of any 8051-based system lies a critical, yet often overlooked, process: the reset. A proper reset sequence is fundamental to bringing the microcontroller from an unknown or powered-down state into a known, stable, and operational condition. Without a correct and reliable reset mechanism, even the most perfectly written firmware can fail to execute, leading to system hangs, erratic behavior, or complete operational failure. This article delves deep into the intricacies of the 8051 MCU Reset, exploring its types, hardware implementation, software implications, and troubleshooting techniques. Understanding this process is not merely an academic exercise; it is a prerequisite for designing robust and dependable embedded systems. For engineers seeking reliable components and in-depth technical resources for such designs, platforms like ICGOODFIND provide invaluable support.

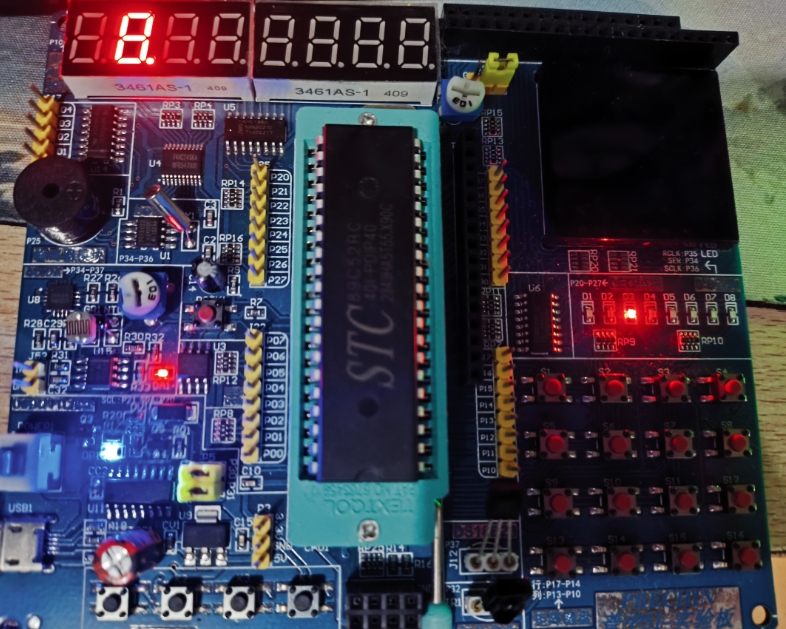

The Fundamentals of 8051 Reset

The reset function in an 8051 microcontroller is its primary initialization mechanism. When activated, it forces the MCU into a predefined state from which it can begin executing program code predictably. The core action of a reset is to halt the current operation, clear certain internal registers, and set the Program Counter (PC) to 0x0000, the location from which the first instruction is fetched.

What Happens During a Reset?

Upon a successful reset, the 8051 undergoes a series of internal operations to ensure a clean slate. The most critical of these are: * Program Counter (PC) Reset: The PC is loaded with the value 0x0000. This is the most crucial step, as it directs the MCU to the start of the program memory, typically where the main firmware or bootloader resides. * Special Function Register (SFR) Initialization: All the SFRs are set to their default power-on values. For instance, the Stack Pointer (SP) is set to 0x07, Ports (P0, P1, P2, P3) are set to 0xFF (configuring them as input ports), and all other SFRs like TCON, TMOD, SCON, etc., are cleared. * Termination of Active Processes: Any ongoing operation, such as timer counts, serial communication, or interrupt servicing, is immediately aborted. * Internal RAM Content: It is a common misconception that a reset clears the internal RAM (addresses 00h-7Fh). The contents of the internal RAM are generally preserved during a reset and are only lost when power is completely removed. This characteristic can be used strategically but also poses a risk if not managed properly.

The Importance of a Stable Power-On Reset

The most critical type of reset is the Power-On Reset (POR). When power is first applied to the MCU, the voltage supply (VCC) rises from 0V to its nominal level (e.g., 5V). During this rise time, the internal circuitry of the 8051 is in an unstable state. If the MCU were allowed to start executing instructions during this period, its behavior would be entirely unpredictable. Therefore, the primary purpose of a Power-On Reset circuit is to hold the MCU in a reset state until the power supply has stabilized at a sufficient voltage for reliable operation. The 8051’s RST pin is active-high, meaning a high logic level (≥ 2.5V for CMOS parts at 5V) must be applied for a minimum duration to guarantee a proper reset.

Implementing Hardware Reset Circuits

A reliable hardware reset circuit is non-negotiable for a production-grade 8051 system. Several circuit configurations can be used, each with its own advantages and trade-offs.

1. The Simple RC Power-On Reset Circuit

This is one of the most basic and cost-effective reset circuits. It consists of a resistor ® and a capacitor © connected to the RST pin and VCC.

VCC --- R ---> RST Pin
              |
              C --- GND

When power is applied, the capacitor is initially uncharged and acts as a short circuit to ground, holding the RST pin low. As VCC rises, the capacitor charges through the resistor, causing the voltage at the RST pin to rise exponentially. The values of R and C are chosen to ensure that the RST pin remains high for a sufficient period (typically longer than the manufacturer-specified minimum reset pulse width and the VCC rise time). While simple, this circuit has drawbacks: it is sensitive to rapid power cycling (as the capacitor may not discharge fully) and may not be reliable in noisy environments.

2. The Debounced Manual Reset Circuit

For many applications, providing users or technicians with a way to manually reset the system is essential. This is typically achieved with a push-button switch.

VCC --- R_pullup ---> RST Pin
                     |
        Switch --- C --- GND

A pull-up resistor holds the RST pin high during normal operation. When the button is pressed, it connects the RST pin directly to ground, forcing a reset. The capacitor helps debounce the switch contact, preventing multiple resets from a single press. Incorporating a manual reset is a key debugging and recovery feature in any development prototype.

3. The Dedicated Reset IC (Supervisor Circuit)

For mission-critical or commercial products where reliability is paramount, a simple RC circuit is insufficient. The recommended solution is to use a dedicated power supervisor IC. These chips, such as the MAX803 or ADM809, provide a robust and precise solution. They: * Guarantee a valid reset signal during power-up, power-down, and brown-out conditions. A brown-out is a temporary dip in the supply voltage below the operational level of the MCU but not a complete power loss. * Generate a reset pulse of a fixed width independent of VCC’s rise time. * Assert reset automatically when VCC falls below a precise threshold (e.g., 4.63V), preventing the MCU from operating outside its specified voltage range. Using a dedicated reset IC is considered industry best practice for ensuring maximum system reliability and is strongly advised over discrete RC circuits for any product beyond a simple hobbyist project.

Software Considerations and Troubleshooting

The hardware reset gets the MCU to a known state, but the software must be written to correctly handle both initialization and any potential software-triggered resets.

Software Initialization After Hardware Reset

After a hardware reset vectors the PC to 0x0000, your software’s startup code must complete the initialization process. This typically involves: 1. Setting up the Stack Pointer (SP): The default SP value of 0x07 conflicts with Register Bank 1. One of the first instructions should relocate the SP to a higher region of internal RAM (e.g., MOV SP, #0x60). 2. Configuring I/O Ports: While ports are set as inputs on reset, you must explicitly configure them for output mode by writing 0s to them if needed. 3. Initializing Variables: As mentioned, internal RAM is not cleared on reset. Global and static variables declared in C must be explicitly initialized by the startup code before main() is called. This code copies initial values from code memory to the designated RAM locations. 4. Setting up Peripherals: Timers, serial ports, and interrupt controllers must be configured according to the application’s needs by writing to their respective SFRs (TMOD, TCON, SCON, IE, IP).

Watchdog Timer (WDT) as a Self-Recovery Mechanism

Many modern 8051 derivatives include a Watchdog Timer. The WDT is a counter that increments independently of the program flow. If the software fails to periodically “kick” or “feed” the WDT (by writing a specific sequence to its SFR), it will overflow and trigger a system reset. The primary function of the Watchdog Timer is to recover from software crashes or infinite loops, making the system self-healing in case of unforeseen errors.

Common Reset-Related Issues and Debugging

• Failure to Start: If the MCU does nothing after power-up, use an oscilloscope to probe the RST pin. Ensure there is a clean rising edge that meets the minimum pulse width specification and that VCC is stable.
• Erratic Behavior: This can be caused by a “marginal” reset where the pulse width is too short or VCC rises too slowly. It can also be caused by noise on the RST pin or power supply.
• Incomplete Initialization: If peripherals don’t work but basic code runs, check your software initialization routines in the startup code.
• Watchdog Resets: If the system resets at seemingly random intervals, it may be due to an overflowing WDT. Check that your code is correctly servicing it within the required time window.

Conclusion

The 8051 MCU Reset process is far more than just pressing a button or applying power; it is a foundational element of embedded system design that bridges hardware and software integrity. A deep understanding of both Power-On Reset requirements and manual/brown-out recovery mechanisms separates amateur designs from professional ones. While simple RC circuits serve for basic prototyping,the implementation of robust hardware reset circuitry, preferably using dedicated supervisor ICs like those you can source through platforms like ICGOODFIND,is absolutely critical for product reliability.Furthermore,a well-structured software initialization routine that properly configures memory,I/O ports,and peripherals ensures that once released from reset,the microcontroller performs its intended functions predictably and consistently.Mastering these concepts empowers engineers tobuild resilient 8051-based systems capable of operating flawlessly in real-world conditions.
