W25Q16JVSNIQ: The Ultimate Guide to This High-Performance Serial Flash Memory
Introduction
In the rapidly evolving world of embedded systems and consumer electronics, the demand for reliable, high-speed, and cost-effective memory solutions has never been greater. Among the myriad of options available, the W25Q16JVSNIQ stands out as a flagship serial NOR flash memory device from Winbond, a global leader in semiconductor memory solutions. This 16M-bit (2M-byte) chip is designed to meet the rigorous requirements of modern applications, from IoT devices and smart home hubs to industrial controllers and automotive electronics. In this comprehensive guide, we will dive deep into the architecture, key features, practical applications, and why the W25Q16JVSNIQ has become a go-to choice for engineers and hobbyists alike. If you are sourcing this component, ICGOODFIND is your trusted partner for authentic, high-quality electronic components at competitive prices.
Main Body
Part 1: Technical Specifications and Core Architecture
The W25Q16JVSNIQ is not just another memory chip; it is a carefully engineered piece of silicon that balances performance, power efficiency, and durability. Let’s break down its core technical attributes.
Memory Organization and Density
The device offers a 16M-bit capacity, organized as 8,192 programmable pages of 256 bytes each. This page-based architecture allows for efficient read and write operations, especially in data-logging applications. The chip supports sector erase (4KB), block erase (32KB and 64KB), as well as full chip erase, giving developers granular control over memory management.
Interface and Clock Speed
Operating on a standard SPI (Serial Peripheral Interface) bus, the W25Q16JVSNIQ supports clock frequencies up to 104 MHz for normal read operations. However, its true power lies in the Quad SPI (QSPI) mode, which enables four-bit data transfer, effectively quadrupling the throughput to 416 Mbps. This makes it ideal for applications requiring fast firmware updates or high-speed code shadowing (execute-in-place, XIP).
Voltage and Power Consumption
The chip operates within a wide voltage range of 2.7V to 3.6V, making it compatible with both 3.3V and 2.8V logic systems. In deep power-down mode, the current consumption drops to a mere 1µA (typical), which is critical for battery-powered IoT sensors and wearables. Active read current is typically around 18mA at 104 MHz, a reasonable trade-off for its performance.
Endurance and Data Retention
One of the most critical factors for industrial applications is reliability. The W25Q16JVSNIQ boasts a minimum of 100,000 program/erase cycles per sector and a data retention period of 20 years. This ensures long-term stability in harsh environments, from automotive engine bays to outdoor smart meters.
Unique ID and Security Features
Each chip comes with a unique 64-bit serial number, which is invaluable for device authentication and anti-counterfeiting measures. Additionally, it supports individual block locking and a one-time programmable (OTP) security register (1024 bytes), allowing manufacturers to store secure keys or calibration data permanently.
Part 2: Key Advantages and Why It Outperforms Competitors
Why choose the W25Q16JVSNIQ over other serial flash devices like the AT25SF161 or the MX25L1606E? The answer lies in a combination of ecosystem maturity, software support, and hardware robustness.
Superior Software Compatibility
Winbond has established the de facto standard command set for SPI NOR flash. The W25Q16JVSNIQ uses the same instruction set as the popular W25Q series, meaning that existing drivers (e.g., in STM32 HAL, ESP-IDF, or Linux MTD) work with zero modification. This drastically reduces development time. In contrast, some competitors require custom drivers or have subtle timing differences that cause bugs.
Advanced Quad Peripheral Interface (QPI) Mode
While many chips offer Quad SPI, the W25Q16JVSNIQ also supports QPI mode, where the instruction itself is sent over four bits. This reduces command overhead and improves random access performance. For real-time systems, this can mean the difference between meeting a strict timing deadline and missing it.
Low-Power Design for Edge AI and Wearables
With the rise of edge AI, devices need to wake quickly, load neural network weights, and go back to sleep. The W25Q16JVSNIQ features a fast wake-up time of 3µs from deep power-down. Combined with its low standby current (5µA), it is perfectly suited for duty-cycled applications. Furthermore, its program/erase suspend capability allows the CPU to pause a long write operation to handle a higher-priority interrupt, a feature often missing in cheaper clones.
Temperature Range and Packaging

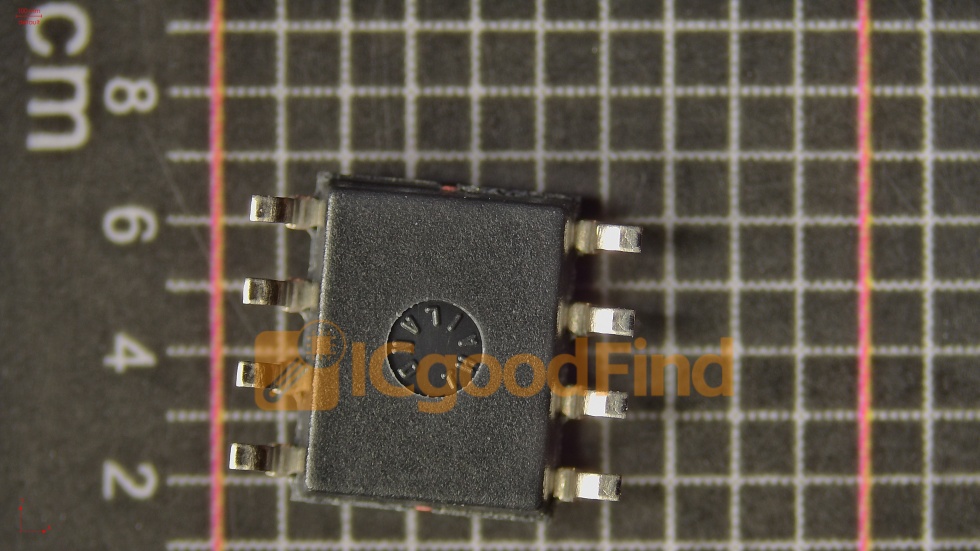

The “SNIQ” suffix indicates a -40°C to +85°C industrial temperature range, making it suitable for outdoor and automotive (non-engine) applications. It comes in a compact 8-pin SOIC-150mil package, which is widely used and easy to solder both manually and via reflow. For space-constrained designs, an alternative WSON-8 package is also available in the same family.
Cost-Effectiveness and Supply Chain Stability
Winbond has been manufacturing NOR flash for over 30 years and maintains multiple fabs, ensuring a stable supply chain even during global chip shortages. When sourcing from ICGOODFIND, you benefit from our direct relationships with authorized distributors, ensuring you get genuine parts at factory-level pricing, with full traceability and datasheet support.
Part 3: Practical Applications and Implementation Tips
The versatility of the W25Q16JVSNIQ makes it a universal solution across diverse industries. Here are three primary use cases and some pro-tips for integration.
Application 1: Firmware Storage for Microcontrollers (MCU)
In most embedded designs, the MCU’s internal flash is too small for a full application. The W25Q16JVSNIQ serves as an external memory for storing firmware images. Using memory-mapped QSPI (XIP), the MCU can execute code directly from the flash, eliminating the need to copy code to RAM. Tip: Ensure your MCU’s QSPI controller is configured for “Dual Data Rate” (DDR) mode to maximize throughput, and always verify the “Continuous Read Mode” bits in the status register to avoid dummy cycles.
Application 2: Data Logging in Industrial IoT Sensors
For environmental sensors (temperature, humidity, vibration), the chip’s 4KB sector erase granularity is perfect for append-only logging. Each sector can store a timestamped record, and the block protection bits can be set to prevent accidental overwrites. Tip: Use the “Page Program” command to write up to 256 bytes at once, but be aware that a page program operation takes approximately 0.4ms (typical). For high-frequency logging, consider using a small RAM buffer and flushing to flash in batches.
Application 3: Asset Tracking and Configuration Storage
In smart locks, medical devices, or networking gear, the W25Q16JVSNIQ stores device certificates, MAC addresses, and user preferences. The OTP region is ideal for storing a unique device secret that cannot be altered after manufacturing. Tip: When designing the PCB, place a 100nF decoupling capacitor close to the VCC pin (pin 8) and a 10kΩ pull-up resistor on the /CS (chip select) line to prevent spurious writes during power-up.
Implementation Checklist:
- Always connect the /WP (Write Protect) and /HOLD pins to VCC through pull-up resistors if unused, to avoid floating inputs.
- Use the “Read ID” (0x9F) command during boot to verify the correct chip is present.
- For high-reliability systems, implement a CRC check on the entire flash content during startup.
- When sourcing, always verify the date code and lot number to avoid counterfeit parts. ICGOODFIND provides full lot traceability and can supply engineering samples for prototyping.
Conclusion
The W25Q16JVSNIQ is more than just a memory component; it is a strategic asset for any product that demands speed, reliability, and long-term availability. Its combination of Quad SPI performance, industrial temperature range, low power consumption, and robust security features makes it the smart choice for engineers who cannot afford failures in the field. Whether you are designing a smart home gateway, a portable medical monitor, or an industrial PLC, this chip delivers the performance headroom you need today and tomorrow.
As the electronics supply chain becomes increasingly complex, sourcing authentic components is paramount. ICGOODFIND simplifies this process by offering a curated inventory of Winbond flash memories, including the W25Q16JVSNIQ, with guaranteed authenticity, competitive pricing, and rapid global shipping. We also provide technical documentation and application notes to help you accelerate your design cycle.
In summary, if you are looking for a high-density, high-speed, and highly secure serial flash, look no further than the W25Q16JVSNIQ. Pair it with a trusted supplier like ICGOODFIND, and you have a winning combination for your next innovative product.
