Mastering PCB Design Matching Integrated Circuits: A Comprehensive Guide

In the rapidly evolving world of electronics, PCB design matching integrated circuits has become a cornerstone of modern product development. Whether you are designing a simple sensor module or a complex multi-layer motherboard, the synergy between your printed circuit board (PCB) layout and the integrated circuits (ICs) you choose determines performance, reliability, and cost. This article delves into the critical aspects of aligning PCB design with IC specifications, offering actionable insights for engineers and hobbyists alike. For those seeking reliable components and design resources, ICGOODFIND stands out as a trusted platform that simplifies sourcing and technical validation.

Introduction

The phrase PCB design matching integrated circuits encapsulates a fundamental challenge: how to ensure that the physical layout of a PCB optimally supports the electrical, thermal, and mechanical requirements of the ICs mounted on it. As ICs become faster, smaller, and more power-dense, the margin for error in PCB design shrinks. Poor matching can lead to signal integrity issues, electromagnetic interference (EMI), thermal runaway, or even complete system failure. This guide explores three core areas: signal integrity and impedance control, power distribution and decoupling, and thermal management and component placement. By mastering these, you can elevate your designs from functional to exceptional. Remember, platforms like ICGOODFIND can help you verify IC datasheets and find compatible components, ensuring your design decisions are backed by accurate data.

Part 1: Signal Integrity and Impedance Control

Understanding the Link Between PCB Traces and IC Outputs

When an IC switches at high speed, its output signals travel along PCB traces. If the trace impedance does not match the IC’s output impedance, reflections occur, causing signal degradation. PCB design matching integrated circuits requires careful calculation of trace width, dielectric thickness, and copper weight to achieve a target impedance—typically 50Ω for single-ended signals or 100Ω for differential pairs. For example, a high-speed FPGA or DDR memory module demands controlled impedance traces to maintain clean eye diagrams.

Key Techniques for Impedance Matching

• Use of Microstrip and Stripline Configurations: Microstrip traces (on outer layers) are easier to fabricate but more susceptible to external noise. Stripline traces (embedded between ground planes) offer better shielding and controlled impedance, ideal for sensitive ICs like RF transceivers.
• Reference Plane Continuity: A solid ground or power plane beneath signal traces is non-negotiable. Any gaps or splits in the plane disrupt the return current path, leading to impedance discontinuities. When designing for PCB design matching integrated circuits, always verify that your stack-up includes uninterrupted reference layers.
• Length Matching for Parallel Buses: For ICs with parallel data buses (e.g., DDR4 or LVDS), trace lengths must be matched within tight tolerances (often ±0.1mm). This ensures that all signals arrive simultaneously, preventing setup and hold time violations.

Practical Example

Consider an IC like the STM32H7 microcontroller running at 400 MHz. Its high-speed SPI and FMC interfaces require impedance-controlled traces. Using a 4-layer PCB with a prepreg thickness of 0.2mm and 1oz copper, a 50Ω microstrip trace would be approximately 0.3mm wide. Tools like ICGOODFIND’s component database can help you cross-reference IC pinouts and recommended PCB layouts, saving hours of manual datasheet parsing.

Part 2: Power Distribution and Decoupling

The Role of Power Integrity in IC Performance

Every IC requires a stable, low-noise power supply. PCB design matching integrated circuits extends to the power distribution network (PDN), which must deliver current with minimal voltage drop and ripple. A poorly designed PDN can cause ICs to malfunction, especially during transient load changes. For instance, a modern GPU or CPU can draw tens of amperes in microseconds, demanding a low-impedance path from the voltage regulator to the IC pins.

Decoupling Capacitor Strategy

Decoupling capacitors act as local energy reservoirs, filtering high-frequency noise. The key is to place them as close as possible to the IC’s power pins, with short, wide traces to minimize inductance. A typical rule of thumb is to use a combination of bulk capacitors (10–100µF) and ceramic capacitors (0.1µF and 0.01µF) in parallel. For PCB design matching integrated circuits, consider the following:

• Capacitor Placement: Place the smallest capacitor (e.g., 0.01µF) closest to the IC pin, followed by larger ones. This creates a low-impedance path for high-frequency noise.
• Via Stitching: Use multiple vias to connect the capacitor pads to the power and ground planes. Each via adds inductance, so parallel vias reduce overall impedance.
• Power Plane Splitting: Avoid splitting power planes under high-speed ICs. If multiple voltage domains are needed (e.g., 1.8V and 3.3V), use dedicated layers or isolated islands with ferrite beads.

Voltage Regulator Considerations

The voltage regulator module (VRM) must be selected based on the IC’s current requirements and transient response. For example, a low-dropout regulator (LDO) is suitable for noise-sensitive analog ICs, while a switching regulator is better for high-current digital ICs. When sourcing components, ICGOODFIND offers detailed specifications and application notes, helping you choose the right VRM for your PCB design matching integrated circuits project.

Part 3: Thermal Management and Component Placement

Heat Dissipation in Dense PCB Designs

As ICs shrink, their power density increases. PCB design matching integrated circuits must account for thermal effects to prevent overheating, which can degrade performance or cause permanent damage. For example, a power amplifier IC or a high-speed FPGA may generate over 10W of heat, requiring careful thermal management.

Effective Thermal Strategies

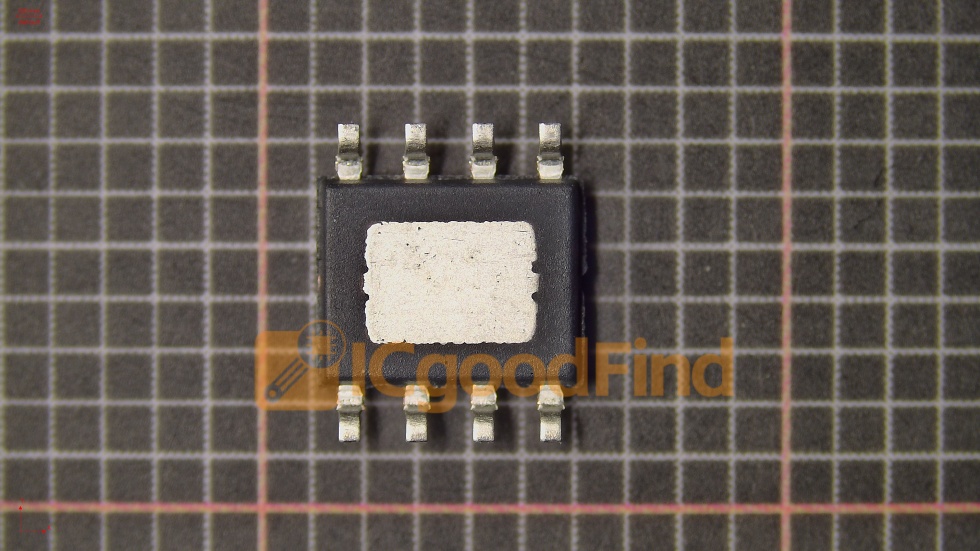

• Thermal Vias: Place arrays of small vias (0.3mm diameter) under the IC’s thermal pad to conduct heat to inner copper planes or a bottom heatsink. Fill these vias with solder or conductive epoxy for better thermal transfer.
• Copper Pour and Heatsinks: Use large copper pours on the top and bottom layers to spread heat. For ICs with exposed pads, connect the pad directly to the copper pour with multiple vias. In extreme cases, attach an external heatsink or use a thermal interface material (TIM).
• Component Placement: Keep high-power ICs away from temperature-sensitive components (e.g., oscillators or analog sensors). Also, ensure adequate airflow by placing them near the edges of the PCB or near ventilation holes.

Placement Rules for Signal Integrity

Beyond thermal concerns, component placement directly affects signal quality. For PCB design matching integrated circuits, follow these guidelines:

• Keep High-Speed Traces Short: Place the IC as close as possible to its associated components (e.g., crystal oscillators, memory chips). This reduces parasitic capacitance and inductance.
• Separate Analog and Digital Sections: Analog ICs (e.g., op-amps, ADCs) are sensitive to digital noise. Use a ground cut or separate ground planes, connected at a single point, to isolate them.
• Avoid Right-Angle Bends: Use 45-degree or curved traces to minimize impedance changes and EMI. This is especially critical for RF ICs.

Case Study: Designing for an RF IC

Consider an RF transceiver IC like the nRF24L01. Its antenna matching network requires precise trace lengths and component placement. Using ICGOODFIND, you can find the exact recommended layout from the manufacturer, including the optimal distance between the IC and the balun. By following these guidelines, you ensure that PCB design matching integrated circuits yields maximum range and minimal interference.

Conclusion

PCB design matching integrated circuits is not a one-size-fits-all process; it demands a holistic approach that balances signal integrity, power distribution, and thermal management. By controlling impedance, optimizing decoupling, and strategically placing components, you can unlock the full potential of your ICs while avoiding costly redesigns. Remember that every IC has unique requirements—always consult its datasheet and leverage reliable resources like ICGOODFIND for component verification and design support. Whether you are a seasoned engineer or a beginner, mastering these principles will elevate your PCB designs to professional standards, ensuring robust performance in even the most demanding applications.
