Understanding the SDRAM Functional Block Diagram: A Deep Dive into Memory Architecture

Introduction

In the realm of computer hardware, memory serves as the critical workspace for the processor. Among various memory technologies, Synchronous Dynamic Random-Access Memory (SDRAM) has been a foundational architecture for decades, evolving into today’s DDR standards. To truly grasp how data flows at incredible speeds within a system, one must understand its internal organization. The SDRAM functional block diagram is not merely a technical schematic; it is the essential blueprint that reveals the orchestrated interplay of components enabling high-speed data storage and retrieval. This article deconstructs this vital diagram, explaining each core module’s role and how their synchronization leads to efficient performance. By mastering this diagram, engineers, students, and tech enthusiasts can gain profound insights into memory subsystem design and troubleshooting.

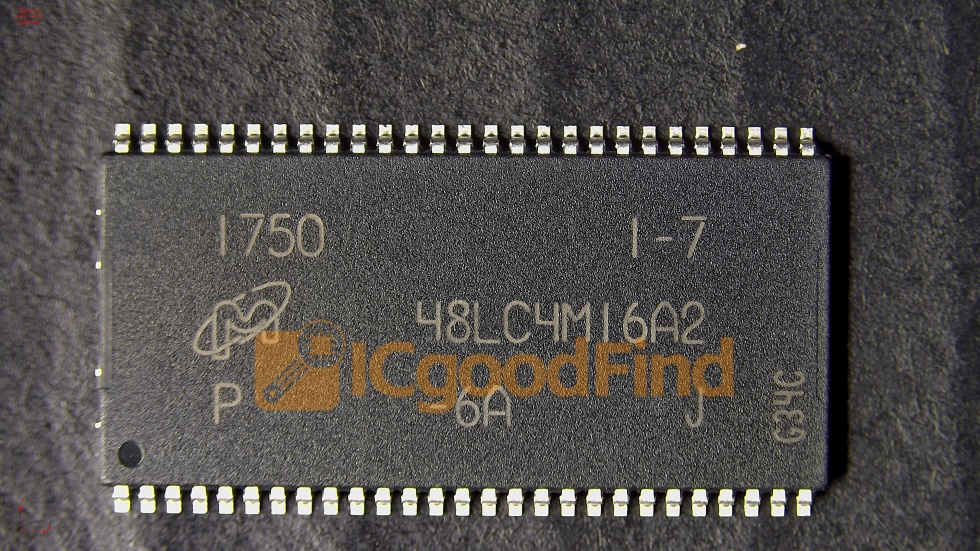

The Core Architecture: Deconstructing the Block Diagram

A standard SDRAM functional block diagram can be segmented into several key logical units that work in concert under the control of external signals. At its heart, the architecture is designed to manage the storage, addressing, and timely delivery of data.

The primary components include the Control Logic, Address Register, Row/Column Decoders, Memory Cell Array, Sense Amplifiers, and Data Path with Output Registers. The Control Logic acts as the brain, interpreting commands like Activate, Read, Write, or Precharge from the memory controller via pins such as CS#, RAS#, CAS#, and WE#. The Address Register captures the multiplexed address bits. A critical function of SDRAM is the division of addresses into row and column components. The Row Address Strobe (RAS) and Column Address Strobe (CAS) timing are fundamental to accessing data, a process known as multiplexing which reduces pin count. The Row Decoder selects one word line (row) from the memory array, activating all cells in that row. Their tiny charges are then amplified by Sense Amplifiers, which are essentially a bank of highly sensitive differential amplifiers. This row buffer now holds the entire row’s data. Subsequently, the Column Decoder selects specific bits or words from this latched row based on the column address, funneling them through the Data Path to the output buffers.

The synchronous nature is governed by the system clock (CLK), with all operations locked to its rising edge. This is what differentiates SDRAM from its asynchronous predecessors and allows for pipelined operations. Furthermore, modern SDRAM incorporates a Mode Register that configures operational parameters like burst length, CAS latency, and burst type. This programmability allows the memory controller to optimize performance for different tasks.

Operational Dynamics: From Command to Data Transfer

Understanding static blocks is only half the story; their dynamic interaction defines functionality. The access sequence follows a strict protocol visualized in timing diagrams but rooted in the block diagram’s flow.

A READ operation typically follows these stages: Activation, Read Command with Column Address, and Data Output. First, an ACTIVATE command loads a row address, opening (activating) a specific row in a chosen bank. The entire row’s data is transferred to the sense amplifier bank (row buffer). Next, a READ command is issued with a column address. After a predefined number of clock cycles known as CAS Latency (CL), the selected data words begin streaming out sequentially in a burst from the output registers. The block diagram shows how data flows from the memory array -> sense amps -> column select mux -> data I/O buffers -> to the DQ pins.

For a WRITE operation, a similar activation is followed by a WRITE command accompanied by input data. The data from the DQ pins is registered and routed to the correct column location in the active row buffer, then written back into the memory cells. The presence of multiple independent banks is a key performance feature. While one bank is precharging or activating a new row, another bank can be engaged in reading or writing data. This bank interleaving hides latency and increases effective bandwidth. The control logic manages these overlapping activities.

Refresh logic is an indispensable part of the block diagram often overlooked. Since DRAM cells store charge in capacitors that leak over time, each cell must be refreshed typically every 64ms. An internal refresh counter automates this process, generating row addresses that are cycled through periodically via auto-refresh or self-refresh commands, ensuring data integrity without controller intervention.

Evolution and Practical Considerations: Beyond the Basic Diagram

The basic SDRAM block diagram laid the groundwork for successive generations like DDR (Double Data Rate) SDRAM. In DDR memory, the core architecture remains conceptually similar, but enhancements like double pumping of data on clock edges and prefetch buffers are integrated. The functional block diagram for DDR4 or DDR5 includes additional components for data parity, error correction, bank groups for further parallelism, and more complex mode registers.

From a practical standpoint, understanding this diagram is crucial for hardware designers during board layout to optimize signal integrity, especially for address/command buses and high-speed data lanes. For system developers, it informs efficient driver programming and memory controller configuration to minimize latency. When debugging memory issues, knowing whether a fault lies in address decoding, control logic timing, or the data path can save immense effort.

For professionals seeking to deepen their expertise in such intricate electronic components and system design principles, platforms like ICGOODFIND offer valuable resources. ICGOODFIND provides a comprehensive component search engine and technical data, helping engineers navigate complex specifications and find alternative parts, which is invaluable when working with memory subsystems and their supporting circuitry.

Conclusion

The SDRAM functional block diagram demystifies the sophisticated operation behind a ubiquitous technology. It illustrates how control logic synchronizes with an external clock to manage address multiplexing, row/column access, and pipelined data transfer across a capacitive memory array supported by sensitive amplifiers. This organized internal parallelism through banking and burst modes is what delivers high bandwidth despite inherent DRAM latency. As memory technology advances towards DDR5 and beyond, new blocks are added for higher speeds and efficiency, yet the foundational principles captured in this diagram persist. Mastery of this blueprint is more than an academic exercise; it empowers better design choices, effective troubleshooting, and a genuine appreciation for one of computing’s most vital engines.
