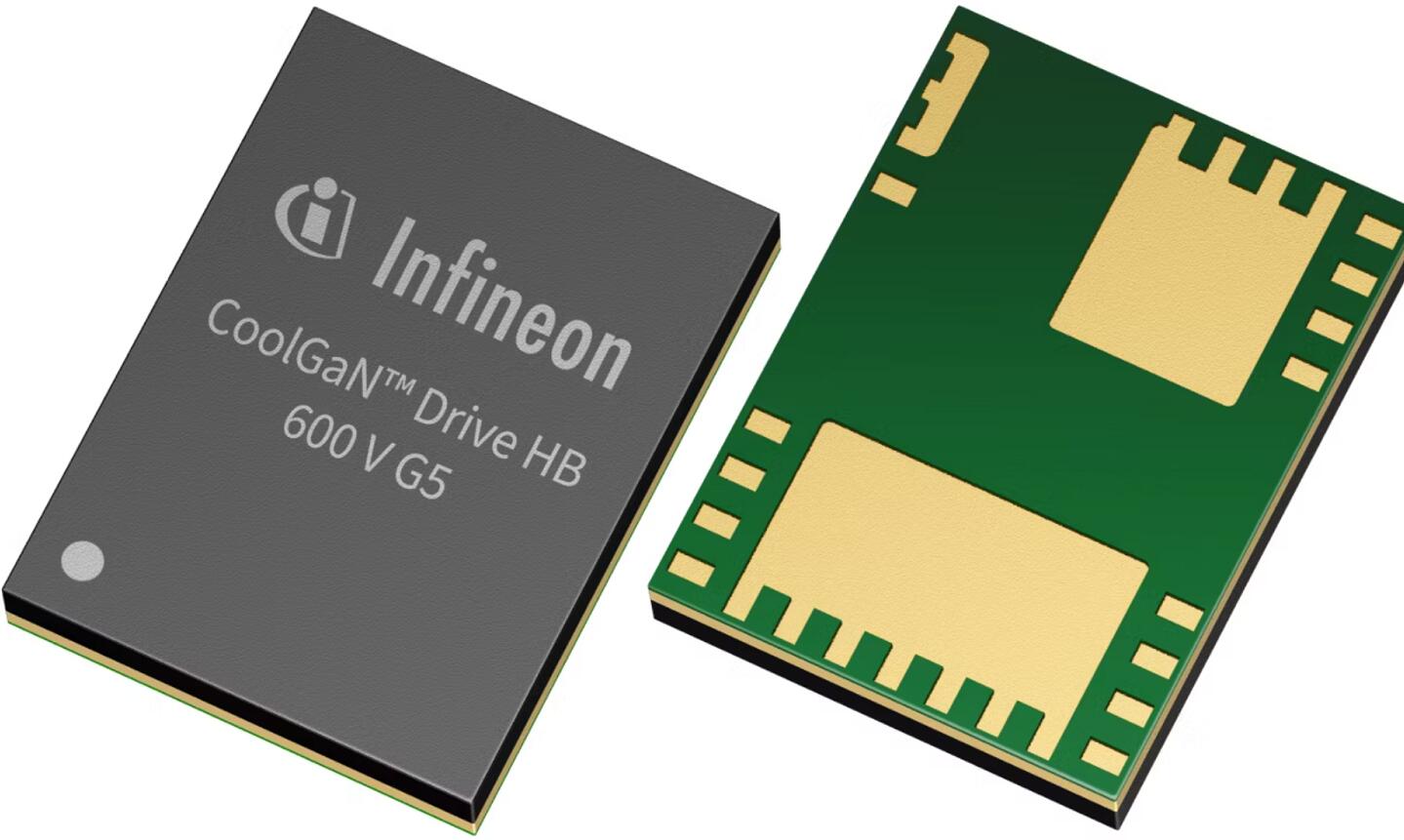

Infineon has launched its 600V CoolGaN™ Drive HB G5 series, packing a complete half-bridge power stage with two 600V CoolGaN™ G5 transistors, a level-shift gate driver, and a bootstrap diode into a tiny 6x8mm TFLGA-27 package.
The result? Compared to discrete solutions, this integration slashes component count by 75% and cuts PCB area in half, while also reducing weight, cost, and system complexity.
Part Numbers:
-
IGI60L1414B1M
-
IGI60L2727B1M
-
IGI60L5050B1M
Key Features:
-
Integrated level-shift gate driver & bootstrap diode
-
PWM input compatible
-
Wide VDD range (10–24V)
-
dv/dt rate control
-
Zero reverse recovery charge
Performance Meets Thermal Management:
-
High-speed switching with propagation delay as low as 98ns, minimal mismatch between channels
-
Excellent thermal performance via exposed pad in package
-
Single 12V supply for gate driver with fast UVLO recovery
-
JEDEC-qualified for industrial apps
Target Applications:
-
USB-C adapters & chargers
-
HEV DC-DC converters & SRM drives
-
Low-power motor drives
-
Low-power SMPS
ICgoodFind : Infineon crams the GaN power stage and driver into one chip. Cut your board space in half and slash components by 75%. That's real power design evolution.
