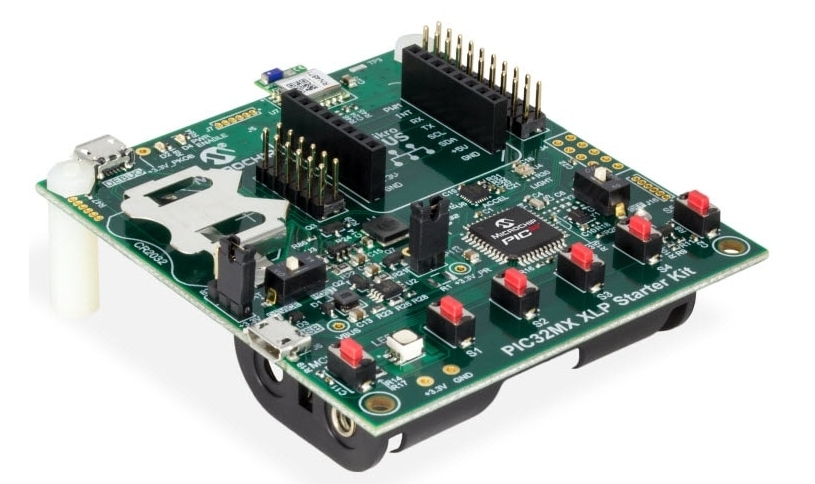

MCU I/O Port (Input/Output Port): The Essential Gateway for Microcontroller Communication

Introduction

In the intricate world of embedded systems and electronics, the Microcontroller Unit (MCU) serves as the brain, processing information and executing commands. However, a brain is useless without senses and the ability to interact with its environment. This critical role of perception and action is fulfilled by the MCU I/O Port (Input/Output Port). These ports are the fundamental physical and logical interfaces through which an MCU communicates with the external world—reading sensor data, controlling actuators, communicating with other chips, and responding to user inputs. Understanding I/O ports is not just foundational; it is absolutely essential for anyone designing hardware or writing firmware. From a simple blinking LED to a complex industrial automation system, every interaction hinges on the proper configuration and use of these versatile digital gateways. In this comprehensive guide, we will delve into the architecture, functionality, and practical applications of MCU I/O ports, highlighting why mastering them is the first step toward proficient embedded design. For engineers seeking reliable components and in-depth technical resources, platforms like ICGOODFIND provide invaluable access to MCU datasheets, application notes, and supplier information, streamlining the development process.

Main Body

Part 1: Architecture and Core Functionality of an I/O Port

An MCU I/O port is typically organized as a group of pins, often in sets of 8 (a “byte”), though this can vary. Each pin within a port can be individually configured and controlled via dedicated registers in the MCU’s memory map. The architecture behind a single I/O pin is a masterpiece of digital design, integrating several key components:

• The Pin Itself: The physical metal connection on the MCU package.
• Data Direction Register (DDR): This is the primary control register that defines whether a pin acts as an input or an output. Setting a bit to ‘1’ usually configures the corresponding pin as an output, while ‘0’ configures it as an input. This configurability is what makes GPIO (General-Purpose Input/Output) ports so flexible.
• Data Register (PORT/PIN): Often, there are two registers associated with the data:
  • Output Data Register (e.g., PORTx): When a pin is configured as an output, writing a ‘1’ or ‘0’ to this register drives the pin to a high (usually VCC) or low (GND) voltage level.
  • Input Data Register (e.g., PINx): When a pin is configured as an input, reading this register returns the current logic level present on the physical pin.
• Pull-up/Pull-down Resistors: Many modern MCUs incorporate software-configurable internal resistors. Enabling an internal pull-up resistor is crucial when connecting buttons or switches to prevent the input pin from floating (being at an undefined voltage) when the switch is open. This ensures a definite logic state.
• Output Drivers: These are transistor-based circuits that provide the current-sourcing or sinking capability to drive external loads like LEDs. A key specification here is the pin’s current drive strength, typically in the range of 5-25mA per pin, with a total limit for the entire port or MCU.

The true power of an I/O port lies in its programmability. By simply writing values to these special function registers (SFRs) in firmware, a developer can dynamically change a pin’s behavior, allowing the same hardware pin to serve multiple functions at different stages of a program’s execution.

Part 2: Operational Modes and Critical Considerations

Beyond the basic input/output dichotomy, I/O ports operate in several nuanced modes, each with its own set of rules and considerations.

1. Digital Input Mode: In this mode, the MCU senses a voltage level. The core concept here is the logic threshold. A voltage above a certain level (V_IH) is read as a logical ‘1’, while a voltage below another level (V_IL) is read as a ‘0’. The region between these thresholds is indeterminate and must be avoided for reliable operation. As mentioned, using pull-up or pull-down resistors is critical for static input devices (like buttons) to define a default state. Furthermore, for inputs connected to noisy environments or long wires, debouncing techniques in software or hardware are essential to filter out mechanical or electrical noise.

2. Digital Output Mode: Here, the MCU actively drives a voltage level to control external components. Key considerations include: * Sourcing vs. Sinking Current: An MCU pin can source current (provide current from VCC to the load) or sink current (accept current from the load to GND). Many designs use MCU pins to sink current for LEDs because the typical MCU’s current-sinking capability is slightly higher. * Load Matching: It is vital not to exceed the absolute maximum current rating per pin and per port aggregate. Driving loads that require more current (like motors or multiple LEDs) directly from an MCU pin can damage it. Using external drivers (transistors, MOSFETs) or buffer ICs is standard practice for higher loads. * Switching Speed: While not as fast as dedicated communication pins, GPIOs have a finite toggle speed. For generating simple PWM signals or toggling at moderate frequencies, understanding this speed is important.

3. Alternate Functions (Peripheral Multiplexing): This is where I/O ports reveal advanced utility. Most pins are shared between general-purpose GPIO and built-in microcontroller peripherals. A single pin might be configurable as: * A simple GPIO. * A UART (Serial Communication) transmit line. * An ADC (Analog-to-Digital Converter) input channel. * A PWM (Pulse Width Modulation) output. This multiplexing is managed via an “Alternate Function Select” register. Effectively leveraging this feature allows for highly compact and powerful designs without requiring external components for basic communication and control tasks.

Part 3: Practical Applications and Design Patterns

The theoretical knowledge of I/O ports translates into countless practical applications.

• Human Interface: Reading tactile switches, capacitive touch sensors, or rotary encoders (input mode with pull-ups). Driving LEDs, seven-segment displays, or buzzer alerts (output mode).
• Sensor Interfacing: Connecting digital sensors that use protocols like I2C or SPI utilizes specific pins configured for their alternate function. Even simple one-wire sensors like DHT11 require precise timing managed via GPIO.
• Actuator Control: Turning a relay on/off to control mains power (output mode with a transistor driver). Providing PWM signals from a pin’s timer peripheral to control the speed of a DC motor or the brightness of an LED.
• Inter-MCU Communication: Bit-banging protocols where software directly manipulates GPIO pins to emulate communication standards like I2C or even generate custom timing signals for proprietary interfaces.

A critical design pattern involves initialization—a sequence performed at the start of any firmware: 1. Configure the Data Direction Register (DDR) to define inputs/outputs. 2. For output pins, set an initial safe state in the Output Data Register (PORT). 3. For input pins, configure the internal pull-up/pull-down resistors if needed. 4. If using peripheral functions, configure the Alternate Function Select registers.

For sourcing components that match these diverse application needs—from robust industrial MCUs with high-drive ports to low-power variants with sophisticated peripheral multiplexing—developers often turn to specialized component search engines. A platform such as ICGOODFIND can be instrumental here, helping engineers quickly locate MCUs with specific I/O port characteristics, package types, and peripheral sets that perfectly align with their project requirements.

Conclusion

The MCU I/O Port is far more than just a simple connection point; it is a dynamically configurable gateway that defines an embedded system’s capabilities and interactions. Mastery over its architecture—the direction registers, data registers, pull-up configurations, and alternate functions—is what separates novice tinkerers from proficient embedded systems engineers. From reading a single button press to orchestrating complex communication protocols via peripheral multiplexing, every operation begins with a correctly configured I/O pin. As systems grow more complex, choosing an MCU with an adequate number of sufficiently capable I/O ports becomes a primary design decision. In this selection process, having access to comprehensive component data and supplier networks is key. Resources like ICGOODFIND empower developers to make informed choices by providing detailed specifications and availability for a vast array of microcontrollers and related components. Ultimately, a deep and practical understanding of I/O ports remains the indispensable foundation upon which all successful embedded hardware and firmware projects are built.
