Model SFH 309 FA-4
Description T-1 (3mm) This series of NPN silicon phototransistors packaged with OSRAM Opto Semiconductors is a series of 3mm (T-1) through-hole devices. They have colorless or black plastic lenses, and diffuse lenses are used for sunlight filters. Suitable applications include photobreakers, industrial electronics, and for control/drive circuits. Standard 3mm (T-1) package through-hole installation # # # infrared phototransistor, OSRAM Opto Semiconductors
Product QR code
Brand: Osram Opto
Packaging T-1
Delivery time
Packaging method Bulk
Standard packaging quantity 1
1.31  yuan 1.31yuan
  • Freight charges：   In stock Freight rate：$13.00
  • Quantity： Inventory(7801) Minimum order quantity(1)
Add to Cart Buy now
Welcome to use ICGOODFIND AI Assistant
Chip AI consultant  Chip AI consultant
Download related files
PDF
  • Disappointment
  • General
  • Satisfied
  • Like
  • Love it so much

Technical parameters/number of channels:

1



Technical parameters/number of pins:

2



Technical parameters/wavelength:

900 nm



Technical parameters/perspective:

24°



Technical parameters/peak wavelength:

900 nm



Technical parameters/polarity:

NPN



Technical parameters/dissipated power:

0.165 W



Technical parameters/power consumption:

165 mW



Technical parameters/rise time:

7 µs



Technical parameters/breakdown voltage (collector emitter):

35 V



Technical parameters/rated power (Max):

165 mW



Technical parameters/descent time:

7 µs



Technical parameters/descent time (Max):

7000 ns



Technical parameters/rise time (Max):

7000 ns



Technical parameters/operating temperature (Max):

100 ℃



Technical parameters/operating temperature (Min):

-40 ℃



Technical parameters/dissipated power (Max):

165 mW



Encapsulation parameters/installation method:

Through Hole



Package parameters/number of pins:

2



Encapsulation parameters/Encapsulation:

T-1



Dimensions/Width:

4 mm



Dimensions/Height:

5.2 mm



Dimensions/Packaging:

T-1



Physical parameters/materials:

Silicon



Physical parameters/operating temperature:

-40℃ ~ 100℃ (TA)



Other/Product Lifecycle:

Active



Other/Packaging Methods:

Bulk



Other/Manufacturing Applications:

Industrial, Motor Drive and Control



Compliant with standards/RoHS standards:

RoHS Compliant



Compliant with standards/lead standards:

Lead Free

The most helpful review

  Only display evaluations with images

Latest Review

Load more

There is no evaluation yet

Looking forward to your sharing the joy brought by technology

Ask a question
Most helpful | Latest
Sorry, I couldn't find the answer. You can click "Ask a Question" to submit this question to the official customer service and product manager of Suteshop Mall who have already purchased it. We will reply in a timely manner.

No questions have been asked yet

I'm not very familiar with the product yet. Just ask around

Load more
    No data available for the time being.

Product inquiry

Alternative material

Model Brand Similarity Encapsulation Introduction Data manual

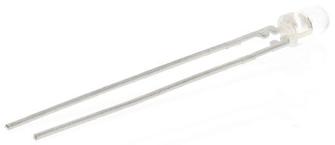

BPW85C BPW85C ATMEL 功能相似 2
BPW85 系列光电晶体管 Vishay Semiconductor BPW85 是一个硅 NPN 光电晶体管系列。 它们采用标准 3mm (T-1) 塑料封装，带透明透镜。 BPW85 光电晶体管对可见光和近红外辐射敏感。 BPW85 系列包括 BPW85、BPW85A、BPW85B 和 BPW85C，它们特别适用于电子控制和驱动电路应用中的检测器。 BPW85 光电晶体管的特征： 3mm (T-1) 封装 通孔安装 光敏性高 高辐射灵敏度 快速响应时间 半强度角：25° 工作温度：-40 至 +100 °C ### 红外光电晶体管，Vishay Semiconductor
PDF
BPW85C BPW85C VISHAY 功能相似 T-1
BPW85 系列光电晶体管 Vishay Semiconductor BPW85 是一个硅 NPN 光电晶体管系列。 它们采用标准 3mm (T-1) 塑料封装，带透明透镜。 BPW85 光电晶体管对可见光和近红外辐射敏感。 BPW85 系列包括 BPW85、BPW85A、BPW85B 和 BPW85C，它们特别适用于电子控制和驱动电路应用中的检测器。 BPW85 光电晶体管的特征： 3mm (T-1) 封装 通孔安装 光敏性高 高辐射灵敏度 快速响应时间 半强度角：25° 工作温度：-40 至 +100 °C ### 红外光电晶体管，Vishay Semiconductor
PDF
SFH 309 FA-4 RN18A SFH 309 FA-4 RN18A Osram Opto 完全替代 T-1
PHOTOTRANSISTOR NPN
